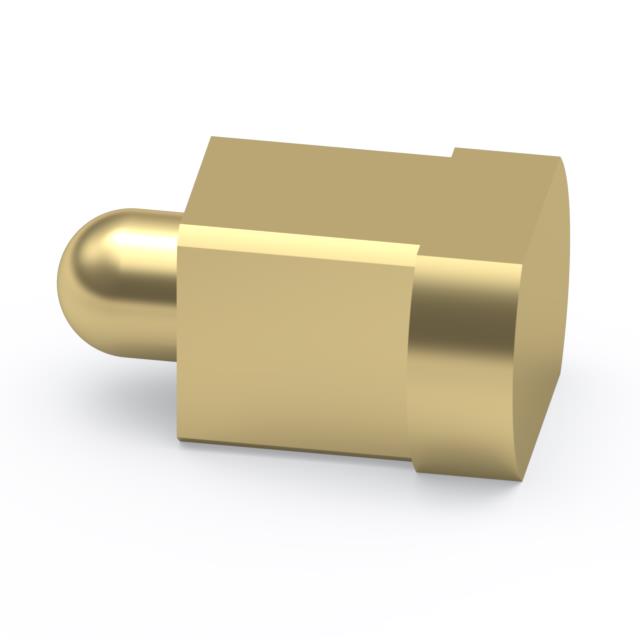

0986-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
HORIZONTAL SURFACE MOUNT (HSMT)
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Maximum Working Height [Max] | Maximum Working Height [Max] | Pad Layout Dimension [diameter] | Pad Layout Dimension [diameter] | Mounting Type | Current Rating (Amps) | Minimum Working Height | Minimum Working Height | Recommended Working Height | Recommended Working Height | Plunger Size [diameter] | Plunger Size [diameter] | Operating Force - Mid Compression | Operating Force - Initial | Mating Cycles | Contact Material | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 0.137 in | 3.48 mm | 0.093 in | 2.36 mm | Surface Mount | 6.4 A | 2.5 mm | 0.098 in | 3 mm | 0.118 in | 0.042 in | 1.07 mm | 60 gf | 15 gf | 1000000 | Brass Alloy | Sleeve & Plunger (Pogo Pins) | 20 µin | 0.51 µm | Gold |
