SC-01 Series

Manufacturer: KEMET

Catalog

COMMON MODE FILTER, 1000UH, THD

Part	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Max) [Max]	Voltage Rating - DC	Number of Lines	Filter Type	DC Resistance (DCR) (Max) [Max]	Mounting Type	Height (Max) [diameter]	Height (Max) [diameter]	Voltage Rating - AC	Size / Dimension [y]	Size / Dimension [diameter]	Size / Dimension [y]	Size / Dimension [diameter]	Inductance @ Frequency	Package / Case	Height (Max) [z]	Height (Max) [z]	DC Resistance (DCR) (Max)

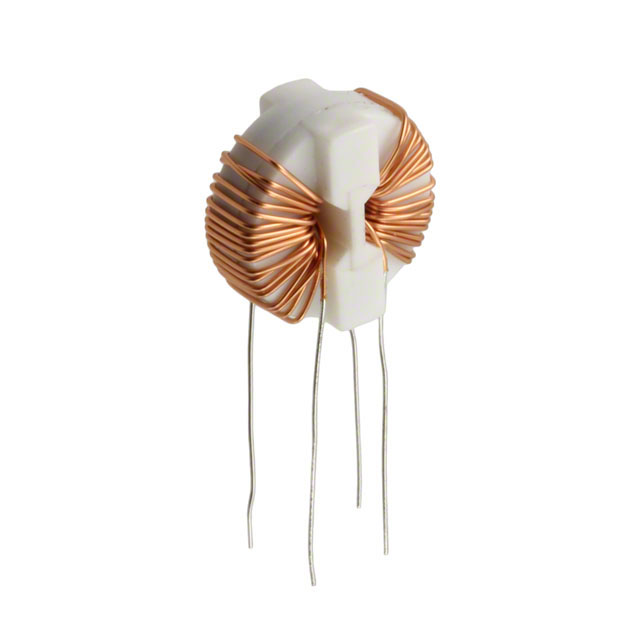

KEMET SC-01-10GS	-40 C	105 ░C	1 A	250 V	2	Power Line	130 mOhm	Through Hole	0.591 in	15 mm	250 V	8.5 mm	0.591 in	0.335 in	15 mm	1 mH	Vertical No Base 4 PC Pin

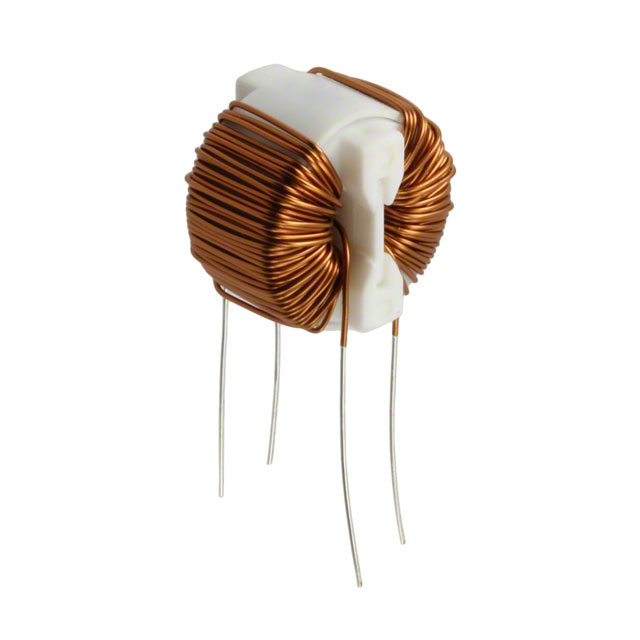

KEMET SC-01-80G	-40 C	105 ░C	1 A	250 V	2	Power Line	300 mOhm	Through Hole			250 V	14 mm	0.689 in	0.551 in	17.5 mm	8 mH	Vertical No Base 4 PC Pin	17.5 mm	0.689 in

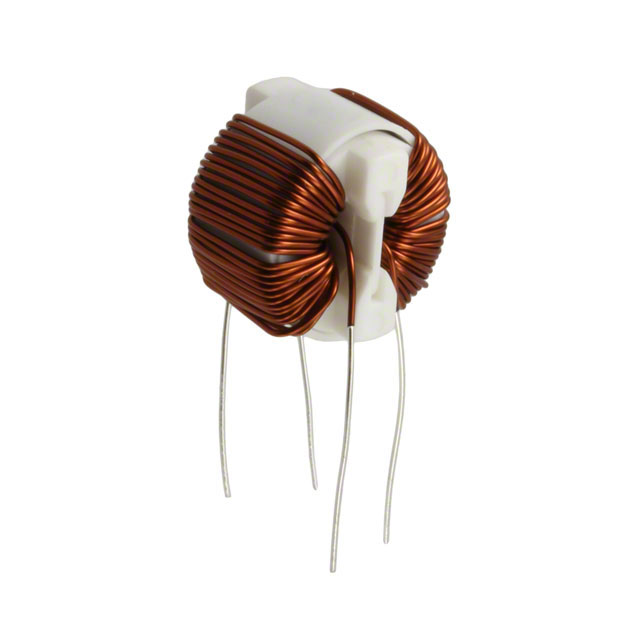

KEMET SC-01-30G	-40 C	105 ░C	1 A	250 V	2	Power Line	0.12 Ohm	Through Hole			250 V	14 mm	0.689 in	0.551 in	17.5 mm	3 mH	Vertical No Base 4 PC Pin	17.5 mm	0.689 in
KEMET SC-01-10G	-40 C	105 ░C	1 A	250 V	2	Power Line		Through Hole			250 V	14 mm	0.689 in	0.551 in	17.5 mm	1 mH	Vertical No Base 4 PC Pin	17.5 mm	0.689 in	70 mOhm
