UF90D Series
Manufacturer: Mechatronics Fan Group
Beta
⌘K

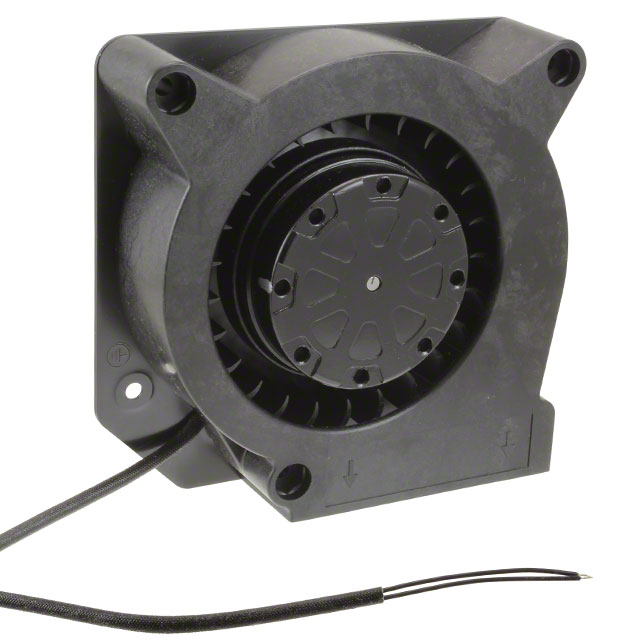

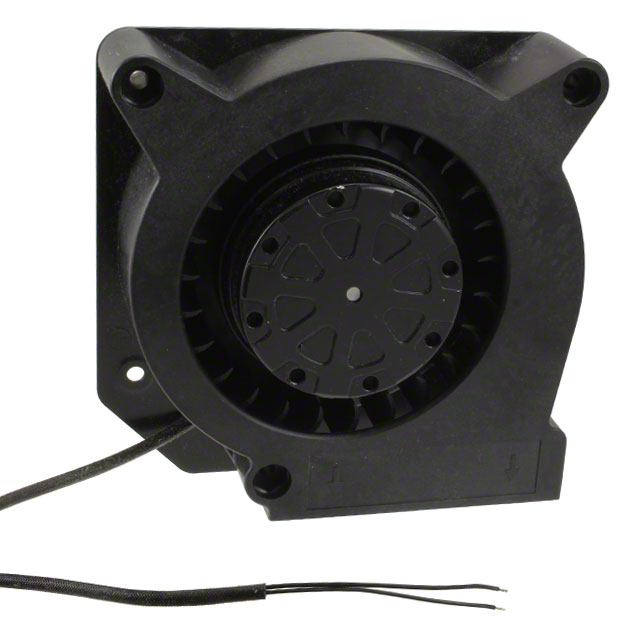

BLOWER 120X37MM 115VAC
| Part | Material - Frame | Current Rating (Amps) | Material - Blade | Weight | Weight | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Fan Type | RPM | Termination | Noise | Width [x] | Features | Power (Watts) | Bearing Type | Air Flow | Air Flow | Voltage - Rated | Approval Agency | Size / Dimension [z] | Size / Dimension [x] | Static Pressure | Static Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mechatronics Fan Group | Aluminum | 0.21 A | Polyamide (PA) Nylon | 1.4 lbs | 635 g | 60 °C | -40 °C | 60 °C | -40 C | Blower Centrifugal | 2700 RPM | 2 Wire Leads | 51 dB(A) | 37.2 mm | Thermal Overload Protector (TOP) | 18 W | Ball | 21 CFM | 0.588 m³/min | 115 VAC | CE cUL TUV UL | 120 mm | 120 mm | 124.5 Pa | 0.5 in H2O |
 Mechatronics Fan Group | Aluminum | 100 mA | Polyamide (PA) Nylon | 1.4 lbs | 635 g | 70 °C | -40 °C | 70 °C | -40 C | Blower Centrifugal | 2700 RPM | 2 Wire Leads | 51 dB(A) | 37.2 mm | Thermal Overload Protector (TOP) | 18 W | Ball | 21 CFM | 0.588 m³/min | 230 VAC | CE cUL TUV UL | 120 mm | 120 mm | 124.5 Pa | 0.5 in H2O |
