FUSE 5x20 T LBC 1.6A/250V (P)
Description
AI

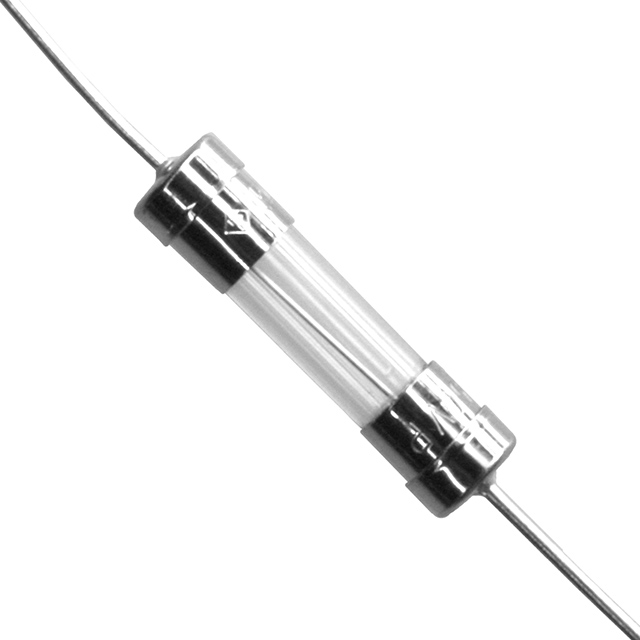

The 213 Series is a 5x20mm time-lag, surge-withstand, glass body cartridge fuse that is designed to IEC specifications.
Beta
⌘K
FUSE 5x20 T LBC 1.6A/250V (P)
FUSE 5x20 T LBC 1.6A/250V (P)
| Part | Mounting Type | Package / Case [y] | Package / Case | Package / Case [x] | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [diameter] | Size / Dimension [x] | Breaking Capacity @ Rated Voltage | Voltage Rating - AC | Response Time | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Fuse Type | Approval Agency | Melting I²t | DC Cold Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LITTELFUSE | Through Hole | 20 mm | Axial | 5 mm | 22.5 mm | 5.8 mm | 0.228 " | 0.886 in | 35 A | 250 V | Slow Blow | 1.6 A | -55 C | 125 °C | Cartridge Glass | BSI CCC CE CSA PSE SEMKO UR VDE | 44.2 | |
LITTELFUSE | Requires Holder | 20 mm | 5 mm | 20 mm | 5.2 mm | 0.205 in | 0.787 " | 35 A | 250 V | Slow Blow | 1.6 A | -55 C | 125 °C | Cartridge Glass | BSI CCC CE CSA PSE SEMKO UR VDE | 44.2 | ||
 LITTELFUSE | Requires Holder | 20 mm | 5 mm | 20 mm | 5.2 mm | 0.205 in | 0.787 " | 35 A | 250 V | Slow Blow | 1.6 A | -55 C | 125 °C | Cartridge Glass | BSI CCC CE CSA PSE SEMKO UR VDE | 44.2 | ||
 LITTELFUSE | Through Hole | 20 mm | Axial | 5 mm | 22.5 mm | 5.8 mm | 0.228 " | 0.886 in | 35 A | 250 V | Slow Blow | 1.6 A | -55 C | 125 °C | Cartridge Glass | BSI CCC CE CSA PSE SEMKO UR VDE | 44.2 | 0.0551 Ohms |
LITTELFUSE | Requires Holder | 20 mm | 5 mm | 20 mm | 5.2 mm | 0.205 in | 0.787 " | 35 A | 250 V | Slow Blow | 1.6 A | -55 C | 125 °C | Cartridge Glass | BSI CCC CE CSA PSE SEMKO UR VDE | 44.2 |
