J105D1AS Series

Catalog

RELAY GEN PURPOSE SPST 10A 18V

Part	Coil Resistance	Relay Type	Operate Time	Release Time	Switching Voltage [Max]	Coil Type	Must Release Voltage	Mounting Type	Must Operate Voltage	Seal Rating	Contact Rating (Current)	Coil Current	Termination Style	Load - Max Switching	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Coil Voltage	Contact Form
CIT Relay and Switch J105D1AS18VDC.45	720 Ohms	General Purpose	10 ms	10 ms	277 VAC	Non Latching	1.8 VDC	Through Hole	13.5 VDC	Sealed - Fully	10 A	25 mA	PC Pin	2770 VA	-55 C	125 °C	Silver Tin Oxide (AgSnO)	18 VDC	SPST-NO (1 Form A)
CIT Relay and Switch J105D1AS9VDC.45	180 Ohms	General Purpose	10 ms	10 ms	277 VAC	Non Latching	0.9 VDC	Through Hole	6.75 VDC	Sealed - Fully	10 A	50 mA	PC Pin	2770 VA	-55 C	125 °C	Silver Tin Oxide (AgSnO)	9 VDC	SPST-NO (1 Form A)

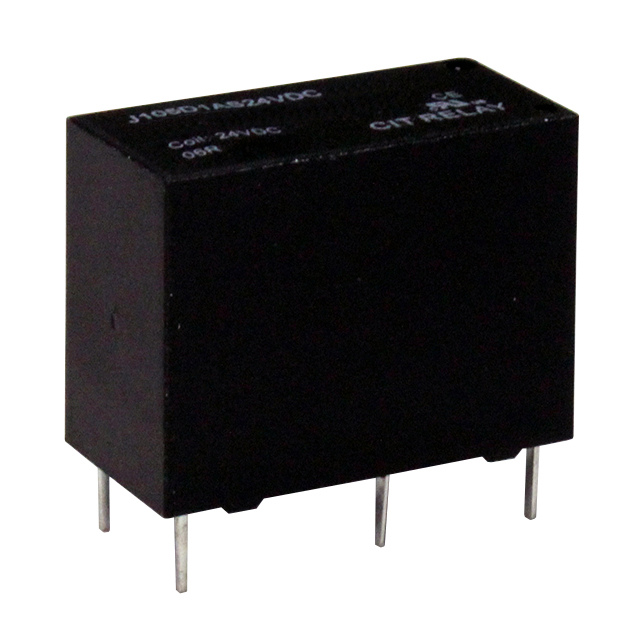

CIT Relay and Switch J105D1AS24VDC.45	1280 Ohms	General Purpose	10 ms	10 ms	277 VAC	Non Latching	2.4 VDC	Through Hole	18 VDC	Sealed - Fully	10 A	18.8 mA	PC Pin	2770 VA	-55 C	125 °C	Silver Tin Oxide (AgSnO)	24 VDC	SPST-NO (1 Form A)
CIT Relay and Switch J105D1AS5VDC.20	125 Ohms	General Purpose	10 ms	10 ms	277 VAC	Non Latching	0.5 VDC	Through Hole	3.75 VDC	Sealed - Fully	10 A	40 mA	PC Pin	2770 VA	-55 C	125 °C	Silver Tin Oxide (AgSnO)	5 VDC	SPST-NO (1 Form A)
CIT Relay and Switch J105D1AS12VDC.20	720 Ohms	General Purpose	10 ms	10 ms	277 VAC	Non Latching	1.2 VDC	Through Hole	9 VDC	Sealed - Fully	10 A	16.7 mA	PC Pin	2770 VA	-55 C	125 °C	Silver Tin Oxide (AgSnO)	12 VDC	SPST-NO (1 Form A)
CIT Relay and Switch J105D1AS6VDC.45	80 Ohms	General Purpose	10 ms	10 ms	277 VAC	Non Latching	0.6 VDC	Through Hole	4.5 VDC	Sealed - Fully	10 A	0.075 A	PC Pin	2770 VA	-55 C	125 °C	Silver Tin Oxide (AgSnO)		SPST-NO (1 Form A)
CIT Relay and Switch J105D1AS3VDC.45	20 Ohms	General Purpose	10 ms	10 ms	277 VAC	Non Latching	0.3 VDC	Through Hole	2.25 VDC	Sealed - Fully	10 A	0.15 A	PC Pin	2770 VA	-55 C	125 °C	Silver Tin Oxide (AgSnO)		SPST-NO (1 Form A)
CIT Relay and Switch J105D1AS5VDC.45	55 Ohms	General Purpose	10 ms	10 ms	277 VAC	Non Latching	0.5 VDC	Through Hole	3.75 VDC	Sealed - Fully	10 A	90.9 mA	PC Pin	2770 VA	-55 C	125 °C	Silver Tin Oxide (AgSnO)	5 VDC	SPST-NO (1 Form A)
CIT Relay and Switch J105D1AS3VDC.20	45 Ohms	General Purpose	10 ms	10 ms	277 VAC	Non Latching	0.3 VDC	Through Hole	2.25 VDC	Sealed - Fully	10 A	66.7 mA	PC Pin	2770 VA	-55 C	125 °C	Silver Tin Oxide (AgSnO)		SPST-NO (1 Form A)
CIT Relay and Switch J105D1AS12VDC.45	320 Ohms	General Purpose	10 ms	10 ms	277 VAC	Non Latching	1.2 VDC	Through Hole	9 VDC	Sealed - Fully	10 A	0.0375 A	PC Pin	2770 VA	-55 C	125 °C	Silver Tin Oxide (AgSnO)	12 VDC	SPST-NO (1 Form A)
