5530008 Series

Manufacturer: DIALIGHT

Catalog

Catalog

LED CBI 3MM BLANK/GREEN RA

Part	Lens Size	Lens Size	Lens Style	Mounting Type	Wavelength - Peak	Voltage Rating	Millicandela Rating	Color	Configuration [y]	Configuration [z]	Viewing Angle	Current	Lens Size [diameter]	Millicandela Rating [custom]	Millicandela Rating [custom]	Lens Type	Current
DIALIGHT 5530008811F	3 mm	T-1	Round with Domed Top	Right Angle Through Hole
DIALIGHT 5530008805F	3 mm	T-1	Round with Domed Top	Right Angle Through Hole	565 nm 585 nm 635 nm	2 V 2.1 V 2.1 V	29 mcd 50 mcd 50 mcd	Blank Green Red Yellow	4	2
DIALIGHT 5530008830F			Round with Domed Top	Right Angle Through Hole	565 nm 585 nm 635 nm	2 V 2.1 V 2.1 V	10 mcd 10 mcd 12.6 mcd	Green (x 2) Red (x 2) Yellow (x 4)	4	2	60 °	20mA Yellow 30mA Green 30mA Red	3 mm
DIALIGHT 5530008808F	3 mm	T-1	Round with Domed Top	Right Angle Through Hole	565 nm 635 nm	2 V 2.1 V		Blank (x 5) Green (x 2) Red (x 1)	4	2				10 mcd	4.7 mcd
DIALIGHT 5530008814F				Right Angle Through Hole
DIALIGHT 5530008802F	3 mm	T-1	Round with Domed Top	Right Angle Through Hole	585 nm	2.1 V	10 mcd	Yellow (x 8)	4	2						Diffused	20 mA

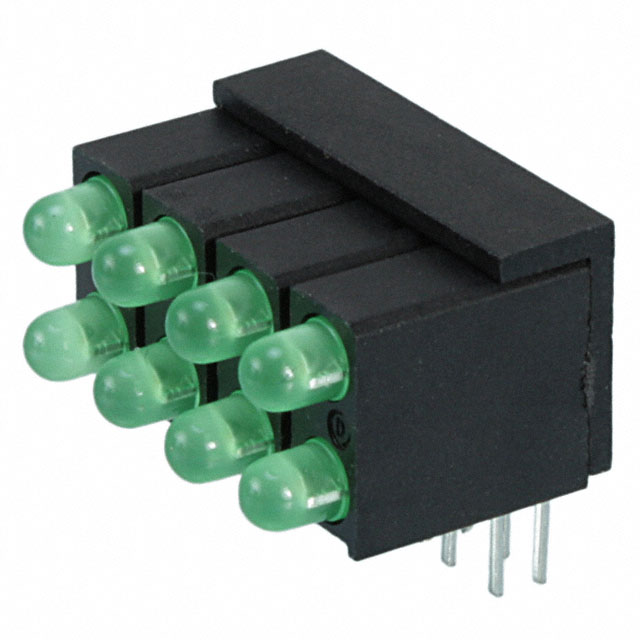

DIALIGHT 5530008837F			Round with Domed Top	Right Angle Through Hole									3 mm
DIALIGHT 5530008806F	3 mm	T-1	Round with Domed Top	Right Angle Through Hole	565 nm	2.1 V	50 mcd	Blank (x 4) Green (x 4)	4	2
DIALIGHT 5530008809F	3 mm	T-1	Round with Domed Top	Right Angle Through Hole	565 nm 585 nm	2.1 V 2.1 V	4.3 mcd 6.3 mcd 50 mcd	Green Green (x 4) Yellow (x 4)	4	2
DIALIGHT 5530008812F	3 mm	T-1	Round with Domed Top	Right Angle Through Hole
