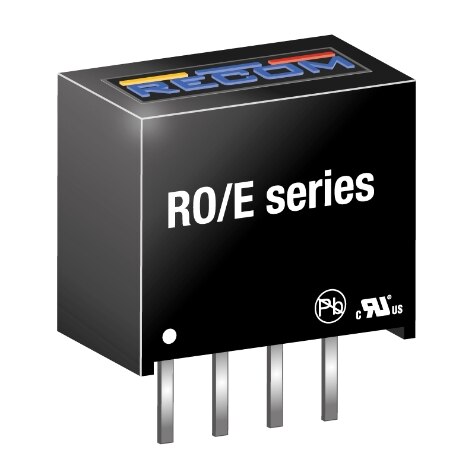

RO/E Series
Manufacturer: Recom Power
Beta
⌘K
ISOLATED DC/DC CONVERTERS - THROUGH HOLE 1W 24VIN 05VOUT CONV DC/DC
| Part | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Voltage - Output 1 | Voltage - Input (Min) [Min] | Voltage - Input (Max) [Max] | Type | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Current - Output (Max) [Max] | Number of Outputs | Voltage - Isolation | Features | Package / Case | Mounting Type | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | 6 mm | 0.39 " | 10 mm | 11.5 mm | 0.45 " | 0.24 " | 5 V | 21.6 V | 26.4 V | Isolated Module | ITE (Commercial) | -40 C | 100 °C | 200 mA | 1 | 2000 V | SCP | 4-SIP Module | Through Hole | |
 Recom Power | 6 mm | 0.39 " | 10 mm | 11.5 mm | 0.45 " | 0.24 " | 5 V | 4.5 V | 5.5 V | Isolated Module | ITE (Commercial) | -40 C | 100 °C | 200 mA | 1 | 2000 V | SCP | 4-SIP Module | Through Hole | 84 % |
Recom Power | 6 mm | 0.39 " | 10 mm | 11.5 mm | 0.45 " | 0.24 " | 5 V | 2.97 V | 3.63 V | Isolated Module | ITE (Commercial) | -40 C | 100 °C | 200 mA | 1 | 2000 V | SCP | 4-SIP Module | Through Hole | 83 % |
Recom Power | 6 mm | 0.39 " | 10 mm | 11.5 mm | 0.45 " | 0.24 " | 5 V | 4.5 V | 5.5 V | Isolated Module | ITE (Commercial) | -40 C | 100 °C | 200 mA | 1 | 2000 V | SCP | 4-SIP Module | Through Hole | 84 % |
Recom Power | 6 mm | 0.39 " | 10 mm | 11.5 mm | 0.45 " | 0.24 " | 5 V | 4.5 V | 5.5 V | Isolated Module | ITE (Commercial) | -40 C | 100 °C | 200 mA | 1 | 1000 V | SCP | 4-SIP Module | Through Hole | 84 % |
 Recom Power | 6 mm | 0.39 " | 10 mm | 11.5 mm | 0.45 " | 0.24 " | 5 V | 2.97 V | 3.63 V | Isolated Module | ITE (Commercial) | -40 C | 100 °C | 200 mA | 1 | 1000 V | SCP | 4-SIP Module | Through Hole | 83 % |
Recom Power | 6 mm | 0.39 " | 10 mm | 11.5 mm | 0.45 " | 0.24 " | 5 V | 4.5 V | 5.5 V | Isolated Module | ITE (Commercial) | -40 C | 100 °C | 200 mA | 1 | 1000 V | SCP | 4-SIP Module | Through Hole | 84 % |
Recom Power | 6 mm | 0.39 " | 10 mm | 11.5 mm | 0.45 " | 0.24 " | 5 V | 10.8 V | 13.2 V | Isolated Module | ITE (Commercial) | -40 C | 100 °C | 200 mA | 1 | 2000 V | SCP | 4-SIP Module | Through Hole | 84 % |
Recom Power | 6 mm | 0.39 " | 10 mm | 11.5 mm | 0.45 " | 0.24 " | 5 V | 21.6 V | 26.4 V | Isolated Module | ITE (Commercial) | -40 C | 100 °C | 200 mA | 1 | 2000 V | SCP | 4-SIP Module | Through Hole | |
Recom Power | 6 mm | 0.39 " | 10 mm | 11.5 mm | 0.45 " | 0.24 " | 5 V | 21.6 V | 26.4 V | Isolated Module | ITE (Commercial) | -40 C | 100 °C | 200 mA | 1 | 1000 V | SCP | 4-SIP Module | Through Hole |
