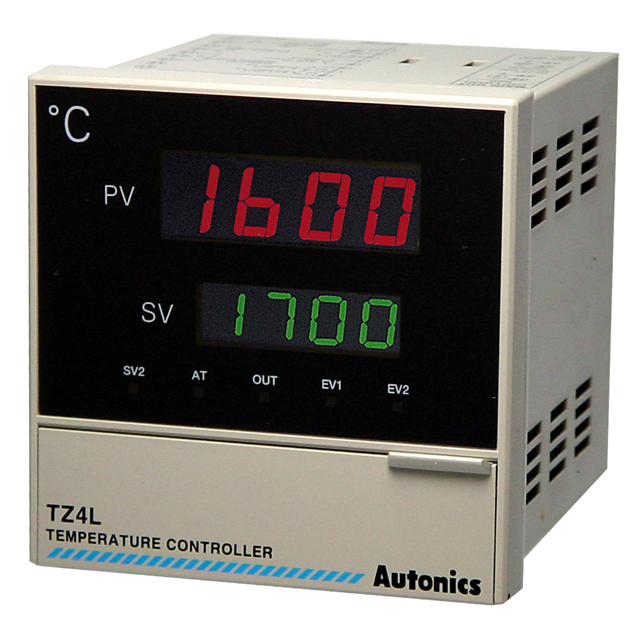

TZ4L Series

Manufacturer: Autonics

Catalog

PID CONTROL SSR 100-240VAC

Part	Output Type	Mounting Type	Type	Number of Characters Per Row	Number of Characters Per Row	Termination Style	Communications	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Features	Voltage - Supply [Max]	Voltage - Supply [Min]	Display Type	Control Method
Autonics TZ4L-B4S	Relay	Panel Mount	Temperature Controller (RTD Type E J K N R S T W)	4	4	Screw Terminal	RS-485	92 mm	92 mm	Option Cards Available	240 VAC	100 VAC	LED - Green Red Characters	On/Off Proportional (PID)
Autonics TZ4L-14S	Solid State	Panel Mount	Temperature Controller (RTD Type E J K N R S T W)	4	4	Screw Terminal		92 mm	92 mm	Option Cards Available	240 VAC	100 VAC	LED - Green Red Characters	On/Off Proportional (PID)
Autonics TZ4L-A4C	Analog PV Output	Panel Mount	Temperature Controller (RTD Type E J K N R S T W)	4	4	Screw Terminal		92 mm	92 mm	Option Cards Available	240 VAC	100 VAC	LED - Green Red Characters	On/Off Proportional (PID)
Autonics TZ4L-14R	Relay	Panel Mount	Temperature Controller (RTD Type E J K N R S T W)	4	4	Screw Terminal		92 mm	92 mm	Option Cards Available	240 VAC	100 VAC	LED - Green Red Characters	On/Off Proportional (PID)
