L6R120 Series

Catalog

AC/DC DESKTOP ADAPTER 15V 120W

Part	Power (Watts)	Output Connector	Input Type	No Load Power Consumption	Standard Number	Voltage - Output	Region Utilized	Form	Applications	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Input Connector	Operating Temperature [Max]	Current - Output (Max) [Max]	Approval Agency	Cord Length	Cord Length	Voltage - Input [Max]	Voltage - Input [Min]	Efficiency	Weight [custom]	Weight [custom]	Size / Dimension [y]	Size / Dimension [z]	Polarization	Output Connector [diameter]	Output Connector [x]	Current - Output (Max)

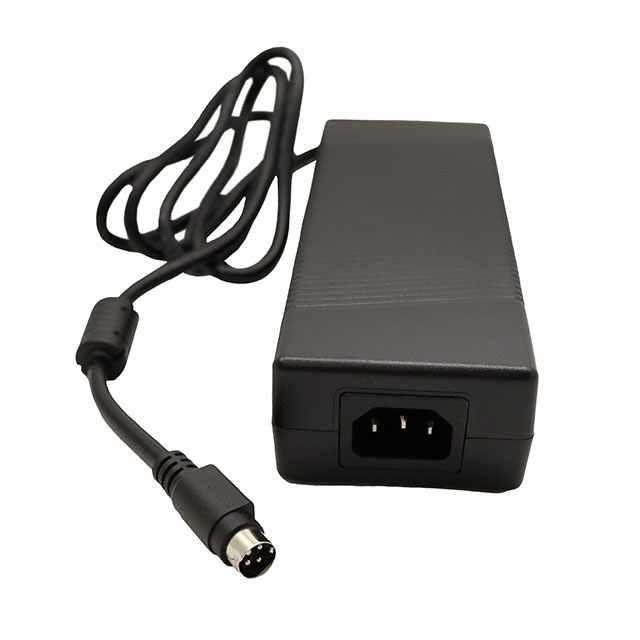

Tri-Mag, LLC L6R120DM-150-C14	120 W	Power DIN 4 Pin	Cord (Sold Separately)	150 mW	60601-1	15 V	International	Desktop (Class I)	Medical	165 mm	39 mm	6.5 in	66 mm	1.54 in	2.6 in	IEC 320-C14	40 °C	8 A	CE cULus EN FCC TUV	1.5 m	59 in	264 VAC	90 VAC	Level VI
Tri-Mag, LLC L6R120D-190-C14	120 W	Power DIN 4 Pin	Cord (Sold Separately)	210 mW	62368-1	19 V	International	Desktop (Class I)	ITE (Commercial)	168 mm		6.61 in		1.54 in	2.6 in	IEC 320-C14	40 °C	6.3 A	CE cULus EN FCC TUV	1.5 m	59 in	264 VAC	90 VAC	CoC Tier 2 Level VI	1.301 lb	590 g	66 mm	39 mm

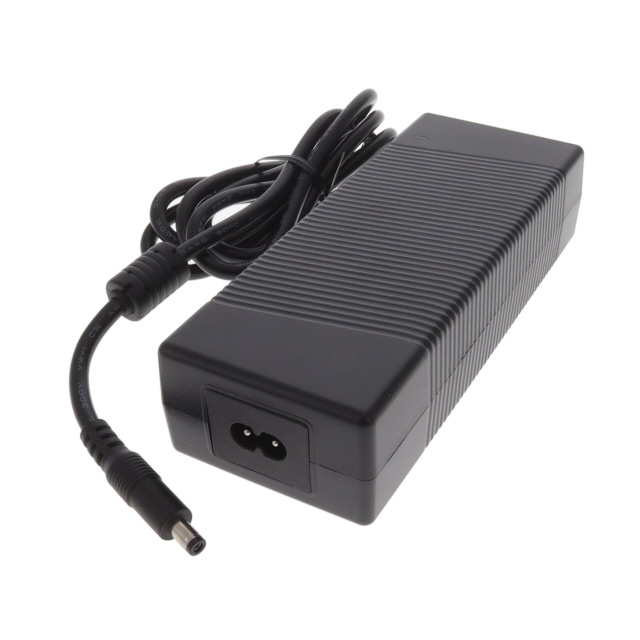

Tri-Mag, LLC L6R120DM-180-C8	120 W	Barrel Plug	Cord (Sold Separately)	150 mW	60601-1	18 V	International	Desktop (Class II)	Medical	165 mm	39 mm	6.5 in	66 mm	1.54 in	2.6 in	IEC 320-C8	40 °C	6.67 A	CE cULus EN FCC TUV	1.5 m	59 in	264 VAC	90 VAC	Level VI					Positive Center	2.5 mm 5.5 mm	9.5 mm

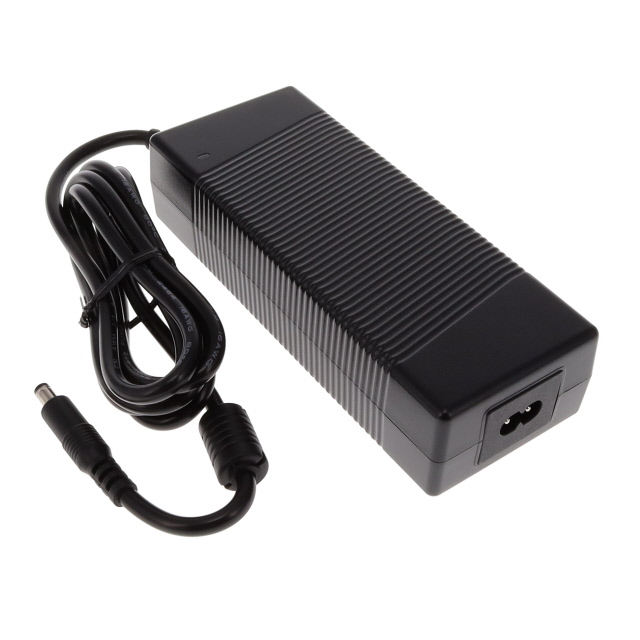

Tri-Mag, LLC L6R120DM-200-C8	120 W	Barrel Plug	Cord (Sold Separately)	150 mW	60601-1	20 V	International	Desktop (Class II)	Medical	165 mm	39 mm	6.5 in	66 mm	1.54 in	2.6 in	IEC 320-C8	40 °C	6 A	CE cULus EN FCC TUV	1.5 m	59 in	264 VAC	90 VAC	Level VI					Positive Center	2.5 mm 5.5 mm	9.5 mm
Tri-Mag, LLC L6R120D-560-C6	120 W	Barrel Plug	Cord (Sold Separately)	210 mW	62368-1	56 V	International	Desktop (Class I)	ITE (Commercial)	168 mm		6.61 in		1.54 in	2.6 in	IEC 320-C6	40 °C	2.14 A	CE cULus EN FCC TUV	1.5 m	59 in	264 VAC	90 VAC	CoC Tier 2 Level VI	1.301 lb	590 g	66 mm	39 mm	Positive Center	2.5 mm 5.5 mm	9.5 mm

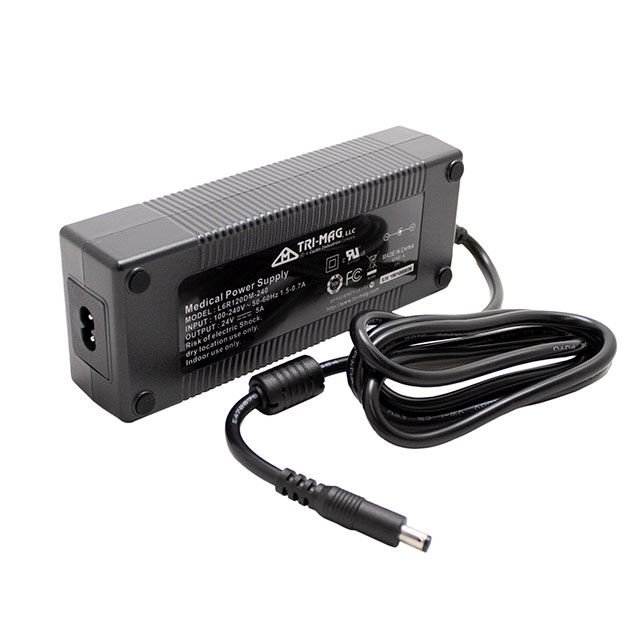

Tri-Mag, LLC L6R120DM-240-C8	120 W	Barrel Plug	Cord (Sold Separately)	150 mW	60601-1	24 V	International	Desktop (Class II)	Medical	165 mm	39 mm	6.5 in	66 mm	1.54 in	2.6 in	IEC 320-C8	40 °C		CE cULus EN FCC TUV	1.5 m	59 in	264 VAC	90 VAC	Level VI					Positive Center	2.5 mm 5.5 mm	9.5 mm	5 A
Tri-Mag, LLC L6R120D-200-C6	120 W	Power DIN 4 Pin	Cord (Sold Separately)	210 mW	62368-1	20 V	International	Desktop (Class I)	ITE (Commercial)	168 mm		6.61 in		1.54 in	2.6 in	IEC 320-C6	40 °C	6 A	CE cULus EN FCC TUV	1.5 m	59 in	264 VAC	90 VAC	CoC Tier 2 Level VI	1.301 lb	590 g	66 mm	39 mm
Tri-Mag, LLC L6R120DM-480-C8	120 W	Barrel Plug	Cord (Sold Separately)	150 mW	60601-1	48 V	International	Desktop (Class II)	Medical	165 mm	39 mm	6.5 in	66 mm	1.54 in	2.6 in	IEC 320-C8	40 °C	2.5 A	CE cULus EN FCC TUV	1.5 m	59 in	264 VAC	90 VAC	Level VI					Positive Center	2.5 mm 5.5 mm	9.5 mm

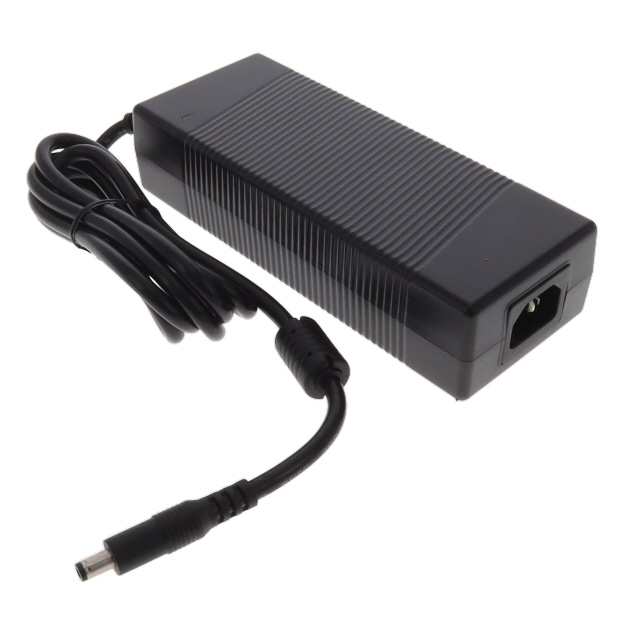

Tri-Mag, LLC L6R120DM-190-C14	120 W	Barrel Plug	Cord (Sold Separately)	150 mW	60601-1	19 V	International	Desktop (Class I)	Medical	165 mm	39 mm	6.5 in	66 mm	1.54 in	2.6 in	IEC 320-C14	40 °C	6.3 A	CE cULus EN FCC TUV	1.5 m	59 in	264 VAC	90 VAC	Level VI					Positive Center	2.5 mm 5.5 mm	9.5 mm
Tri-Mag, LLC L6R120D-480-C6	120 W	Barrel Plug	Cord (Sold Separately)	210 mW	62368-1	48 V	International	Desktop (Class I)	ITE (Commercial)	168 mm		6.61 in		1.54 in	2.6 in	IEC 320-C6	40 °C	2.5 A	CE cULus EN FCC TUV	1.5 m	59 in	264 VAC	90 VAC	CoC Tier 2 Level VI	1.301 lb	590 g	66 mm	39 mm	Positive Center	2.5 mm 5.5 mm	9.5 mm
