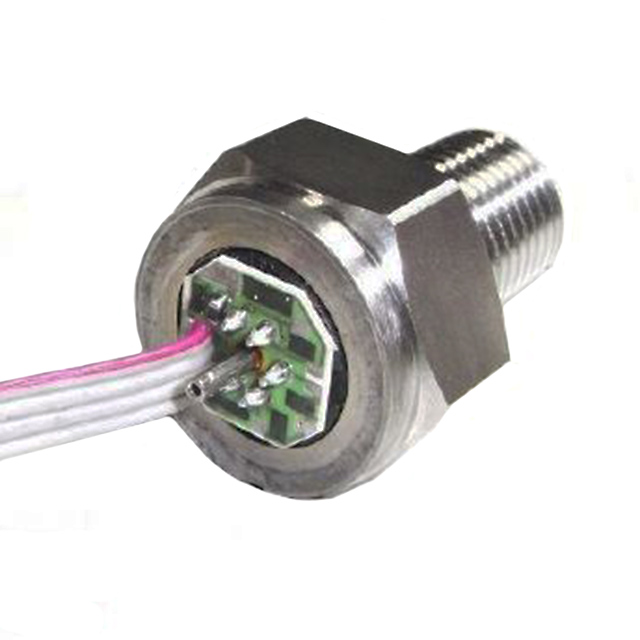

82CV Series

Catalog

SENSOR 15PSIG 0.1V

Part	Port Style	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Accuracy	Output Type	Maximum Pressure	Maximum Pressure	Pressure Type	Output [Max]	Output [Min]	Output	Termination Style	Operating Pressure	Operating Pressure	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Features	Maximum Pressure [Max]	Maximum Pressure [Max]
TE Connectivity AMP Connectors 82CV-015G-R	No Port	125 °C	-40 C	Board Mount	0.1 %	Wheatstone Bridge	310.26 kPa	45 PSI	Vented Gauge	100 mV	0 mV	10 V	Connector	15 PSI	103.42 kPa	14 V	10 VDC	Cylinder	Temperature Compensated
TE Connectivity AMP Connectors 82CV-100A-R	No Port	125 °C	-40 C	Board Mount	0.1 %	Wheatstone Bridge				100 mV	0 mV	10 V	Connector	100 PSI	689.48 kPa	14 V	10 VDC	Cylinder	Temperature Compensated	300 PSI	2068.43 kPa
