XBRR-24 Series

Catalog

ZIGBEE MODULES - 802.15.4 XBEE RR, 2.4 GHZ, ZIGBEE, RF PAD ANTENNA, SURFACE MOUNT, 1M/96K

Part	Operating Temperature [Max]	Operating Temperature [Min]	Serial Interfaces	Current - Receiving	RF Family/Standard	Voltage - Supply [Max]	Voltage - Supply [Min]	Data Rate	Modulation	Power - Output	Package / Case	Memory Size	Utilized IC / Part	Frequency	Current - Transmitting [x]	Mounting Type	Antenna Type	Sensitivity	Protocol	Current - Transmitting

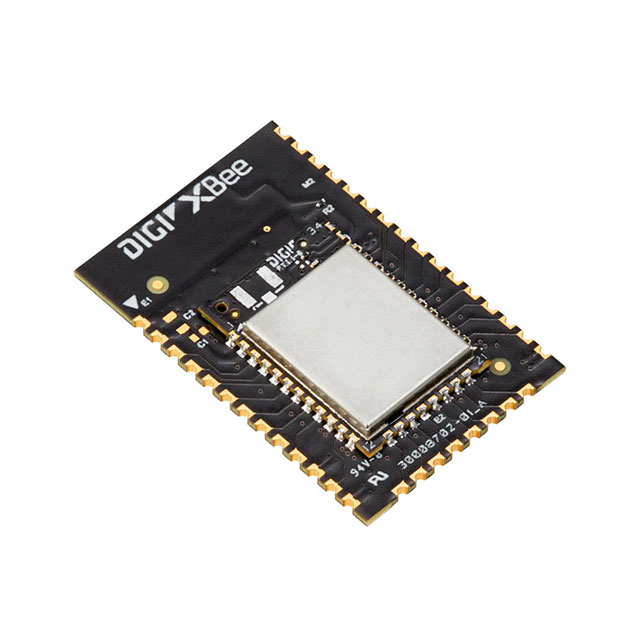

Digi International XBRR-24Z8PS-J	85 °C	-40 C	I2C SPI UART	14 mA	802.15.4 Bluetooth	3.8 V	1.71 V	250 KBd	DSSS	8 dBm	34-SMD Module	1 MB 96 kB	EFR32MG	2.4 GHz	32 mA	Surface Mount	Integrated Trace	-103 dBm	Zigbee®

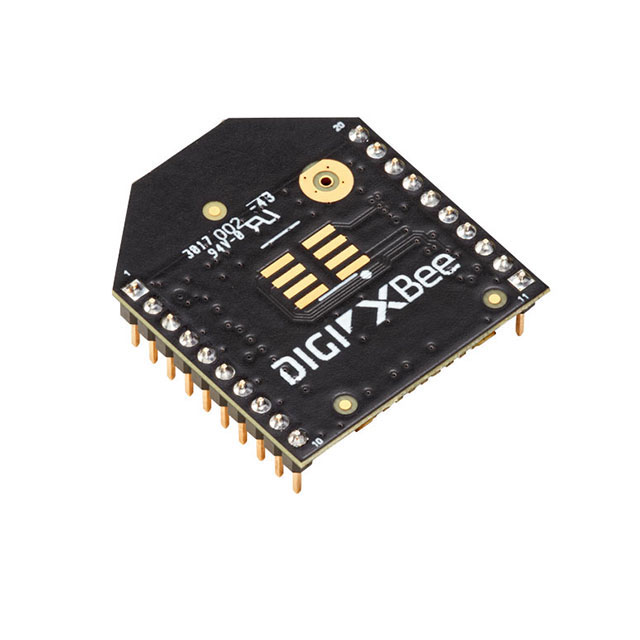

Digi International XBRR-24Z8PT-J	85 °C	-40 C	I2C SPI UART	14.5 mA	802.15.4 Bluetooth	3.8 V	1.71 V	250 KBd	DSSS	8 dBm	20-DIP Module	1 MB 96 kB	EFR32MG	2.4 GHz		Through Hole	Integrated Trace	-103 dBm	Zigbee®	30 mA
Digi International XBRR-24Z8PT	85 °C	-40 C	I2C SPI UART	14.5 mA	802.15.4 Bluetooth	3.8 V	1.71 V	250 KBd	DSSS	19 dBm	20-DIP Module	1 MB 96 kB	EFR32MG	2.4 GHz		Through Hole	Integrated Trace	-103 dBm	Zigbee®	195 mA

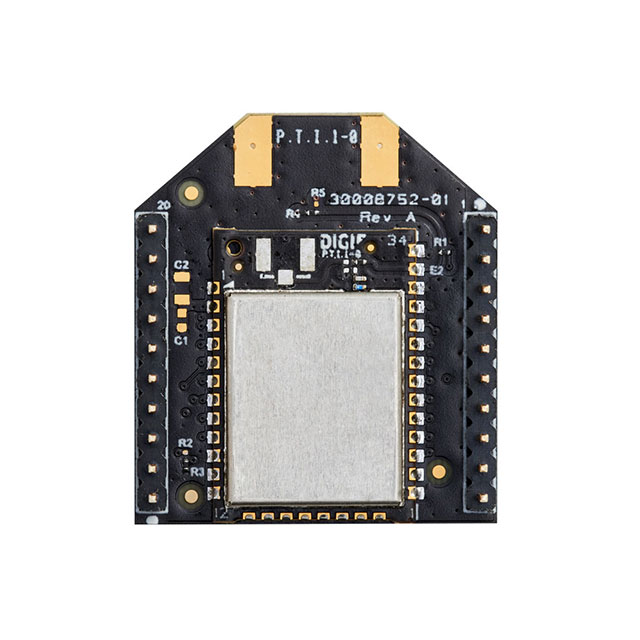

Digi International XBRR-24Z8UT-J	85 °C	-40 C	I2C SPI UART	14.5 mA	802.15.4 Bluetooth	3.8 V	1.71 V	250 KBd	DSSS	8 dBm	20-DIP Module	1 MB 96 kB	EFR32MG	2.4 GHz		Through Hole	Integrated Trace + U.FL	-103 dBm	Zigbee®	30 mA

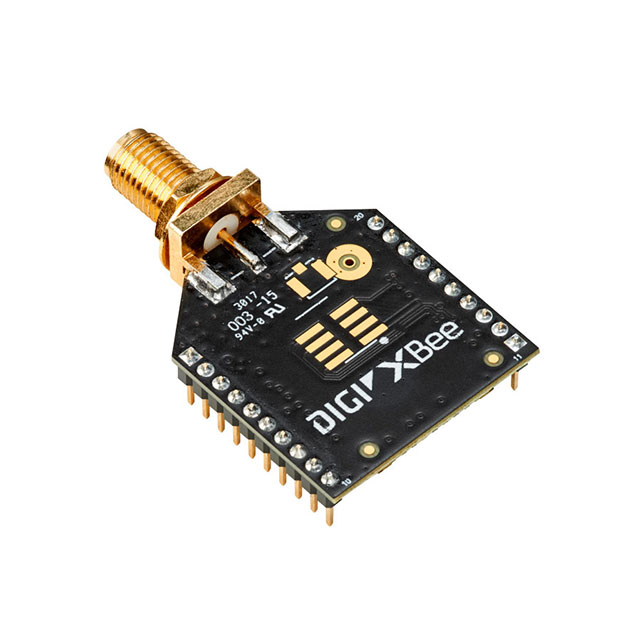

Digi International XBRR-24Z8ST	85 °C	-40 C	I2C SPI UART	14 mA	802.15.4 Bluetooth	3.8 V	1.71 V	250 KBd	DSSS	8 dBm	20-DIP Module	1 MB 96 kB	EFR32MG	2.4 GHz		Through Hole	Antenna Not Included SMA	-103 dBm	Zigbee®	193 mA

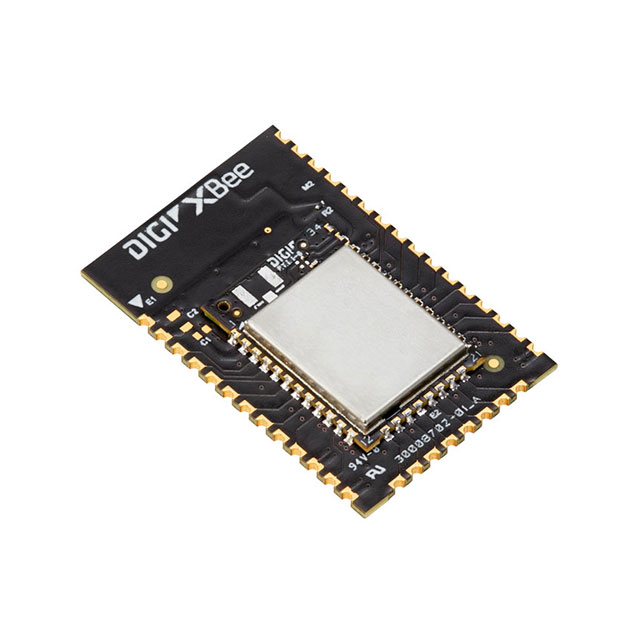

Digi International XBRR-24Z8PS	85 °C	-40 C	I2C SPI UART	14 mA	802.15.4 Bluetooth	3.8 V	1.71 V	250 KBd	DSSS	8 dBm	34-SMD Module	1 MB 96 kB	EFR32MG	2.4 GHz		Surface Mount	Integrated Trace	-103 dBm	Zigbee®	193 mA

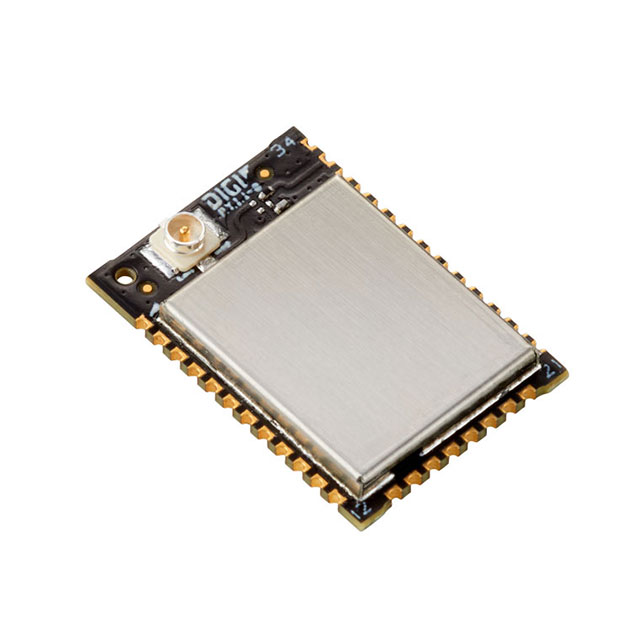

Digi International XBRR-24Z8UM	85 °C	-40 C	I2C SPI UART	14.5 mA	802.15.4 Bluetooth	3.8 V	1.71 V	250 KBd	DSSS	19 dBm	34-SMD Module	1 MB 96 kB	EFR32MG	2.4 GHz		Surface Mount	Integrated Trace + U.FL	-103 dBm	Zigbee®	195 mA

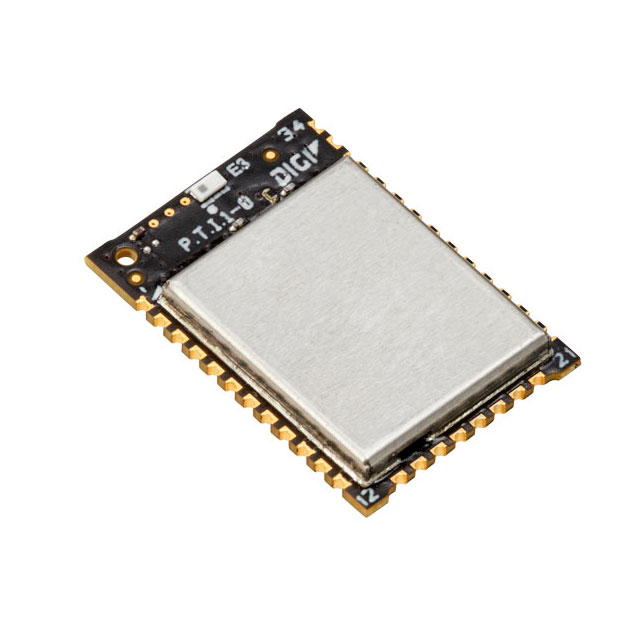

Digi International XBRR-24Z8CM	85 °C	-40 C	I2C SPI UART	14 mA	802.15.4 Bluetooth	3.8 V	1.71 V	250 KBd	DSSS	8 dBm	34-SMD Module	1 MB 96 kB	EFR32MG	2.4 GHz		Surface Mount	Chip Integrated	-103 dBm	Zigbee®	193 mA

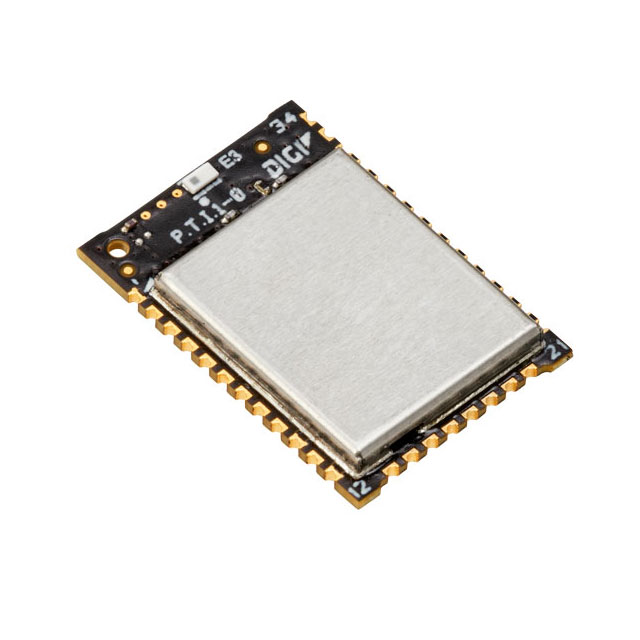

Digi International XBRR-24ACM	85 °C	-40 C	I2C SPI UART	14 mA	802.15.4 Bluetooth	3.8 V	1.71 V	250 KBd	DSSS	8 dBm	34-SMD Module	1 MB 96 kB	EFR32MG	2.4 GHz		Surface Mount	Chip Integrated	-103 dBm	Zigbee®	193 mA

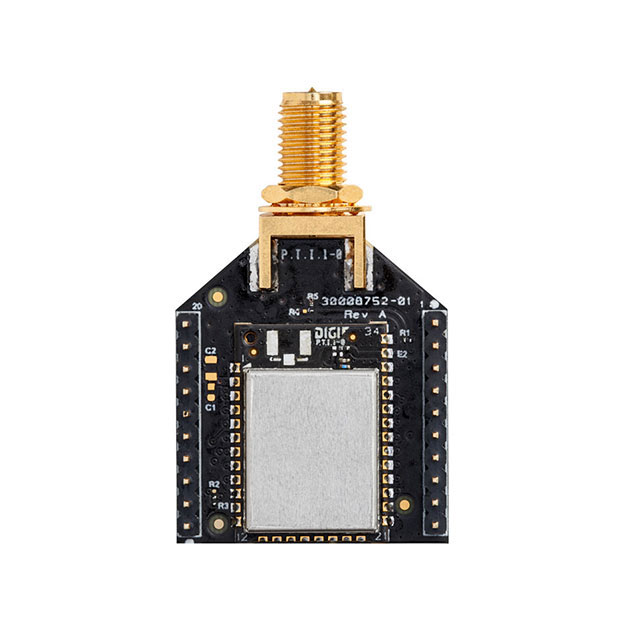

Digi International XBRR-24Z8ST-J	85 °C	-40 C	I2C SPI UART	14 mA	802.15.4 Bluetooth	3.8 V	1.71 V	250 KBd	DSSS	8 dBm	20-DIP Module	1 MB 96 kB	EFR32MG	2.4 GHz	32 mA	Through Hole	Antenna Not Included SMA	-103 dBm	Zigbee®
