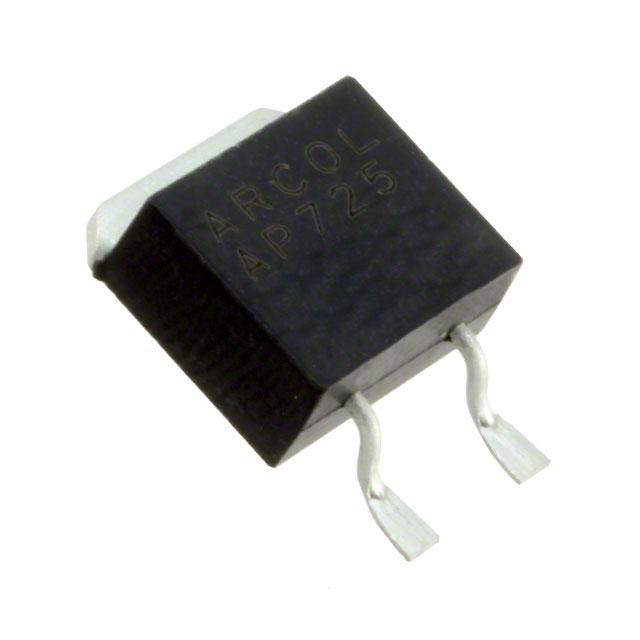

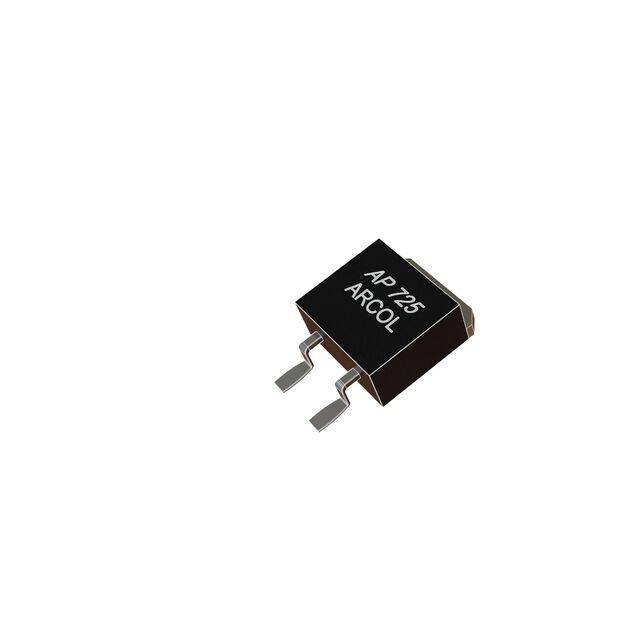

AP725 Series

Manufacturer: Ohmite

Catalog

THICK FILM RESISTORS - SMD 20W 68 OHM 1% TOL. 100PPM

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Supplier Device Package	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Temperature Coefficient	Composition	Resistance	Power (Watts)	Package / Case	Number of Terminations [custom]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]
Ohmite AP725 68R F	4.88 mm	0.192 "	TO-263 (D2PAK)	1 %	155 C	-55 C	100 ppm/°C	Thick Film	68 Ohms	20 W	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	2	0.398 in	0.346 "	8.8 mm	10.1 mm
Ohmite AP725 200R F	4.88 mm	0.192 "	D2PAK	1 %	155 C	-55 C	100 ppm/°C	Thick Film	200 Ohms	20 W	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	2	0.398 in	0.346 "	8.8 mm	10.1 mm
Ohmite AP725 200R F	4.88 mm	0.192 "	TO-263 (D2PAK)	1 %	155 C	-55 C	100 ppm/°C	Thick Film	200 Ohms	20 W	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	2	0.398 in	0.177 "	4.5 mm	10.1 mm
Ohmite AP725 75R F	4.88 mm	0.192 "	TO-263 (D2PAK)	1 %	155 C	-55 C	100 ppm/°C	Thick Film	75 Ohms	20 W	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	2	0.398 in	0.346 "	8.8 mm	10.1 mm
