410F0-25 Series
Manufacturer: CNC Tech
Beta
⌘K

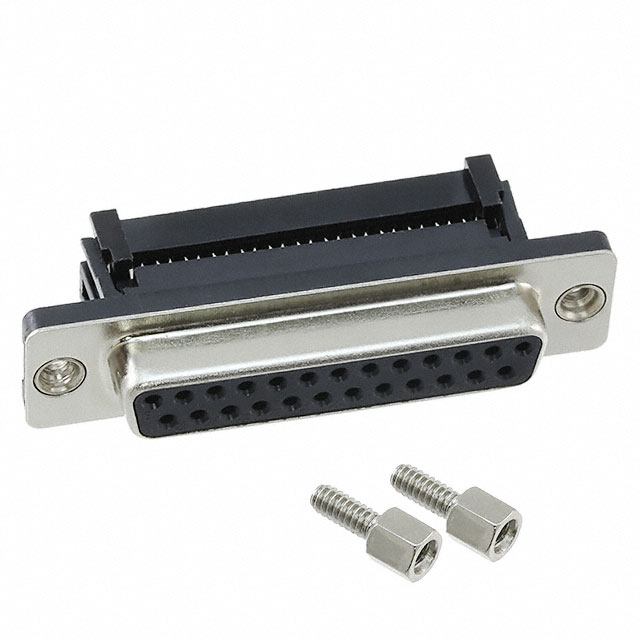

CONN D-SUB RCPT 25POS IDC
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Dielectric Material | Voltage Rating | Material Flammability Rating | Contact Finish | Number of Rows [custom] | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Connector Type | Features | Shell Material, Finish | Connector Style | Mounting Type | Termination | Flange Feature | Number of Positions | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CNC Tech | -40 C | 105 ░C | Brass | Polybutylene Terephthalate (PBT) Glass Filled | 250 V | UL94 V-0 | Gold | 2 | B DB | 3 | Receptacle Female Sockets | Feed Through Strain Relief | Nickel Plated Steel | D-Sub | Free Hanging (In-Line) | IDC Ribbon Cable | 4-40 Mating Side Female Screwlock | 25 | Signal |
 CNC Tech | -40 C | 105 ░C | Brass | Polybutylene Terephthalate (PBT) Glass Filled | 250 V | UL94 V-0 | Gold | 2 | B DB | 3 | Receptacle Female Sockets | Feed Through | Nickel Plated Steel | D-Sub | Free Hanging (In-Line) | IDC Ribbon Cable | 4-40 Mating Side Female Screwlock | 25 | Signal |
