P50E Series

Catalog

I/O CONNECTOR, 34 CONTACTS, PLUG, WIRE TO BOARD, THROUGH HOLE, P50E SERIES, PCB MOUNT

Part	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Number of Rows [custom]	Number of Positions [custom]	Material Flammability Rating	Number of Positions Loaded	Termination	Style	Connector Type	Fastening Type	Insulation Material	Insulation Color	Mounting Type	Shrouding	Current Rating (Amps)	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Insulation Height	Insulation Height	Contact Finish - Post	Wire Gauge	Wire Type	Contact Finish Thickness	Features	Contact Finish	Color	Cable Termination	Pitch	Pitch	Number of Positions	Contact Finish - Post [custom]
3M Electronic Specialty P50E-034P1-S1-EA	Flash	1.27 mm	0.05 in	2	34	UL94 V-0	All	Solder	Board to Board Cable	Plug	Latch Holder	Glass Filled Nylon Polyamide (PA)	Black	Through Hole	Shrouded - 4 Wall	0.5 A	0.118 in	3 mm	0.25 µm	10 µin	Gold	Copper Alloy	-55 C	85 °C	Center Strip Contact	10.7 mm	0.421 "	Gold

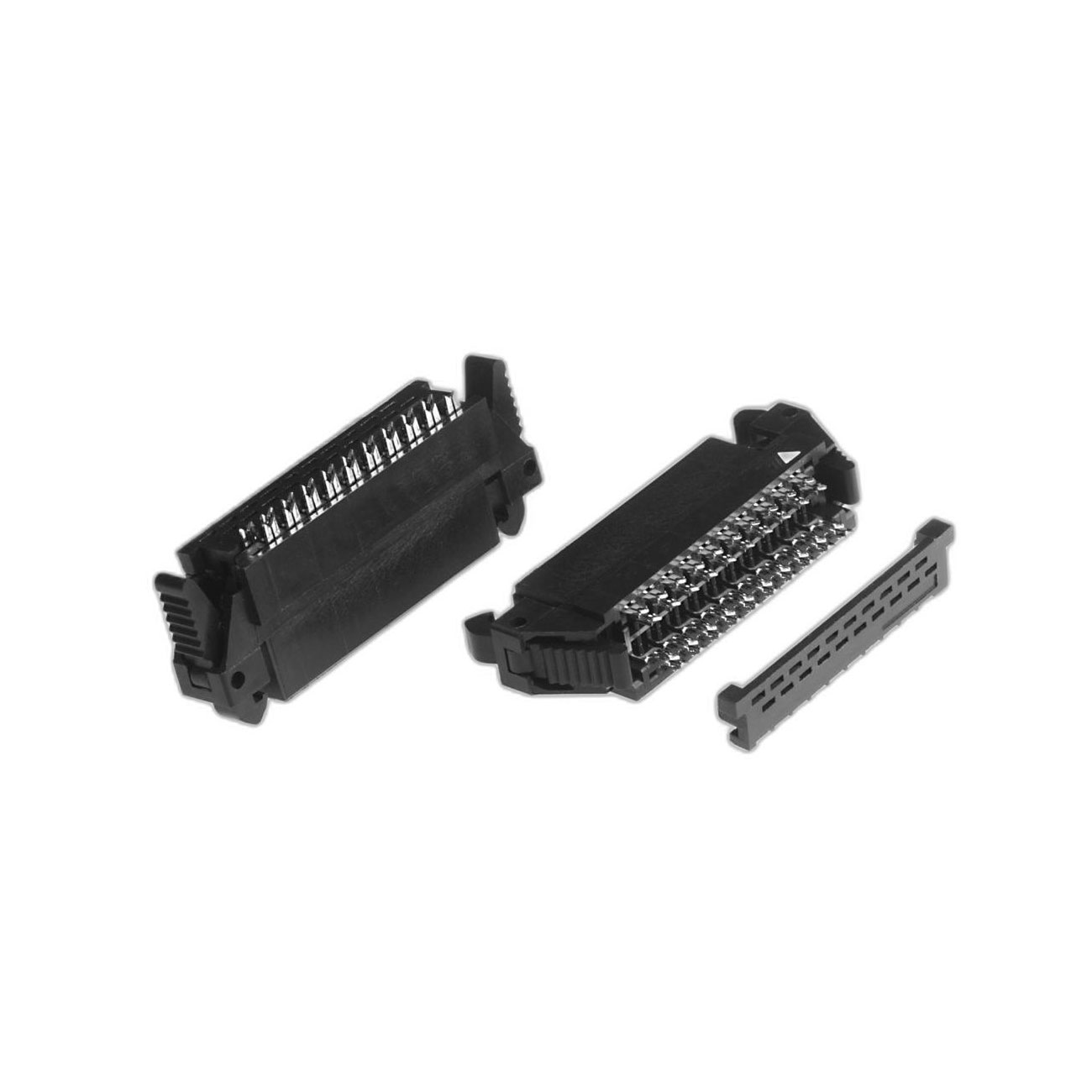

3M Electronic Specialty P50E-026S-EA				2						Socket	Latch Lock/Eject Hooks			Free Hanging (In-Line)											Outer Shroud Contact				28 AWG	Ribbon Cable	Flash	Closed End	Gold	Black	IDC	0.05 in	1.27 mm	26
3M Electronic Specialty P50E-100P1-SR1-TGF		1.27 mm	0.05 in	2		UL94 V-0	All	Solder	Board to Board Cable	Plug	Latch Holder	Glass Filled Nylon Polyamide (PA)	Black	Right Angle Through Hole	Shrouded - 4 Wall	0.5 A	0.118 in	3 mm	0.25 µm	10 µin	Gold	Copper Alloy	-55 C	85 °C	Center Strip Contact	7 mm	0.276 in											100	Tin Alloy

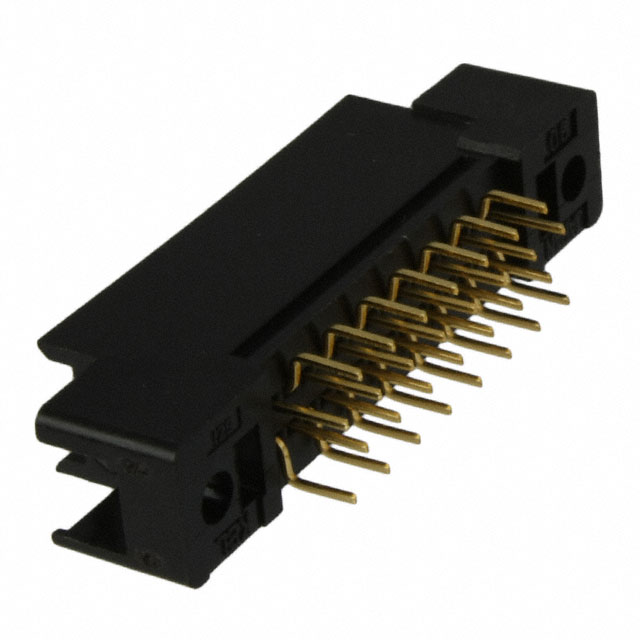

3M Electronic Specialty P50E-030P1-S1-EA	Flash	1.27 mm	0.05 in	2		UL94 V-0	All	Solder	Board to Board Cable	Plug	Latch Holder	Glass Filled Nylon Polyamide (PA)	Black	Through Hole	Shrouded - 4 Wall	0.5 A	0.118 in	3 mm	0.25 µm	10 µin	Gold	Copper Alloy	-55 C	85 °C	Center Strip Contact	10.7 mm	0.421 "	Gold										30
3M Electronic Specialty P50E-060P1-S1-EA	Flash	1.27 mm	0.05 in	2		UL94 V-0	All	Solder	Board to Board Cable	Plug	Latch Holder	Glass Filled Nylon Polyamide (PA)	Black	Through Hole	Shrouded - 4 Wall	0.5 A	0.118 in	3 mm	0.25 µm	10 µin	Gold	Copper Alloy	-55 C	85 °C	Center Strip Contact	10.7 mm	0.421 "	Gold										60
3M Electronic Specialty P50E-040S-EA				2						Socket	Latch Lock/Eject Hooks			Free Hanging (In-Line)											Outer Shroud Contact				28 AWG	Ribbon Cable	Flash	Closed End	Gold	Black	IDC	0.05 in	1.27 mm	40
3M Electronic Specialty P50E-052P1-SR1-EA	Flash	1.27 mm	0.05 in	2		UL94 V-0	All	Solder	Board to Board Cable	Plug	Latch Holder	Glass Filled Nylon Polyamide (PA)	Black	Right Angle Through Hole	Shrouded - 4 Wall	0.5 A	0.118 in	3 mm	0.25 µm	10 µin	Gold	Copper Alloy	-55 C	85 °C	Center Strip Contact	7 mm	0.276 in	Gold										52
3M Electronic Specialty P50E-050S-EA				2						Socket	Latch Lock/Eject Hooks			Free Hanging (In-Line)											Outer Shroud Contact				28 AWG	Ribbon Cable	Flash	Closed End	Gold	Black	IDC	0.05 in	1.27 mm	50
3M Electronic Specialty P50E-068P1-S1-EA	Flash	1.27 mm	0.05 in	2		UL94 V-0	All	Solder	Board to Board Cable	Plug	Latch Holder	Glass Filled Nylon Polyamide (PA)	Black	Through Hole	Shrouded - 4 Wall	0.5 A	0.118 in	3 mm	0.25 µm	10 µin	Gold	Copper Alloy	-55 C	85 °C	Center Strip Contact	10.7 mm	0.421 "	Gold										68 positions
3M Electronic Specialty P50E-068P1-SR1-EA	Flash	1.27 mm	0.05 in	2		UL94 V-0	All	Solder	Board to Board Cable	Plug	Latch Holder	Glass Filled Nylon Polyamide (PA)	Black	Right Angle Through Hole	Shrouded - 4 Wall	0.5 A	0.118 in	3 mm	0.25 µm	10 µin	Gold	Copper Alloy	-55 C	85 °C	Center Strip Contact	7 mm	0.276 in	Gold										68 positions
