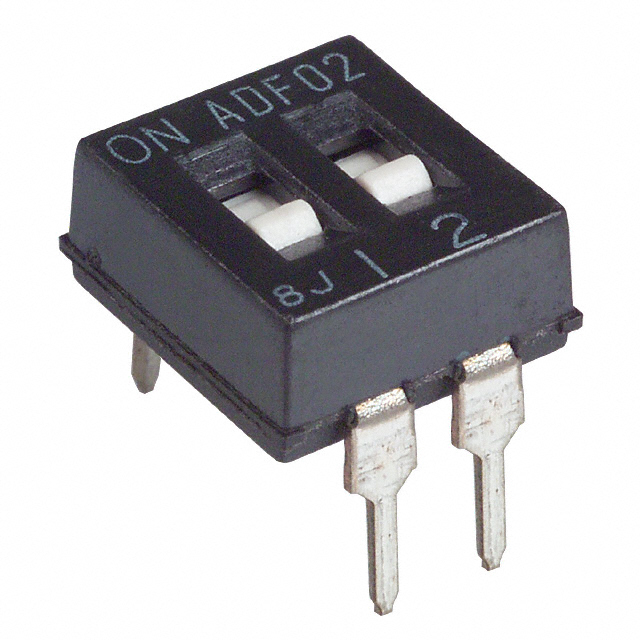

ADF02 Series

Catalog

SWITCH SLIDE DIP SPST 0.025A 24V

Part	Mechanical Life	Length	Length	Body Material	Electrical Life	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Voltage Rating	Actuator Level	Number of Positions	Height Above Board [z]	Height Above Board [z]	Mounting Type	Termination Style	Contact Material	Current Rating (Amps)	Actuator Type	Pitch	Pitch	Height Above Board	Height Above Board
TE Connectivity AMP Connectors ADF02S	1000 Cycles	7.06 mm	0.278 in	Polyphenylene Sulfide (PPS)	1000 Cycles	SPST	85 °C	-30 ░C	Gold	24 VDC	Flush Recessed	2	0.177 in	4.5 mm	Surface Mount	Gull Wing	Copper Alloy	25 mA	Slide (Standard)	2.54 mm	0.1 "
TE Connectivity AMP Connectors ADF02SA	1000 Cycles	7.06 mm	0.278 in	Polyphenylene Sulfide (PPS)	1000 Cycles	SPST	85 °C	-30 ░C	Gold	24 VDC	Flush Recessed	2	0.203 in	5.15 mm	Surface Mount	J Lead	Copper Alloy	25 mA	Slide (Standard)	2.54 mm	0.1 "
TE Connectivity AMP Connectors ADF02	1000 Cycles	7.06 mm	0.278 in	Polyphenylene Sulfide (PPS)	1000 Cycles	SPST	85 °C	-30 ░C	Gold	24 VDC	Flush Recessed	2			Through Hole	PC Pin	Copper Alloy	25 mA	Slide (Standard)	2.54 mm	0.1 "	0.189 in	4.8 mm
