FR02KC10 Series

Catalog

ENCODING SWITCH; DEC/BCD; POS: 10; SMT; RCONT MAX: 100MΩ; FR02

Part	Mechanical Life	Length [x]	Length [x]	Body Material	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Actuator Type	Pitch	Pitch	Actuator Level	Circuit	Mounting Type	Contact Finish	Termination Style	Contact Material	Current Rating (Amps)	Voltage Rating	Washable

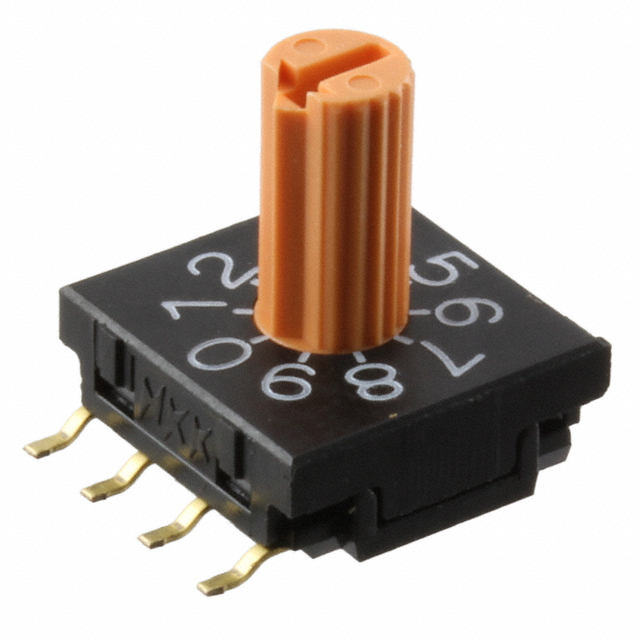

NKK Switches FR02KC10P-R	10000 Steps	0.394 in	10 mm	Polyamide (PA) Nylon Glass Filled	10000 Cycles	85 °C	-25 °C	10	Rotary with Shaft	2.54 mm	0.1 "	Raised	BCD Complement	Surface Mount	Gold	Gull Wing	Copper Alloy	100 mA	5 V
NKK Switches FR02KC10P-S	10000 Steps	0.394 in	10 mm	Polyamide (PA) Nylon Glass Filled	10000 Cycles	85 °C	-25 °C	10	Rotary with Shaft	2.54 mm	0.1 "	Raised	BCD Complement	Surface Mount	Gold	Gull Wing	Copper Alloy	100 mA	5 V
