67000 Series

Catalog

CONN FFC RCPT HSG 36POS 2.54MM

Part	Note	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Number of Positions	Voltage Rating	Connector Type	Material Flammability Rating	Current Rating (Amps)	Housing Material	Pitch [x]	Pitch [x]
Amphenol ICC (FCI) 67000-036LF	Contacts Not Included	Black	125 °C	-65 ░C	1	36	500 V	Housing for Female Contacts	UL94 V-0	3 A	Polyester Thermoplastic Glass Filled	2.54 mm	0.1 in
Amphenol ICC (FCI) 67000-003LF	Contacts Not Included	Black	125 °C	-65 ░C	1		500 V	Housing for Female Contacts	UL94 V-0	3 A	Polyester Thermoplastic Glass Filled	2.54 mm	0.1 in
Amphenol ICC (FCI) 67000-026LF	Contacts Not Included	Black	125 °C	-65 ░C	1	26	500 V	Housing for Female Contacts	UL94 V-0	3 A	Polyester Thermoplastic Glass Filled	2.54 mm	0.1 in
Amphenol ICC (FCI) 67000-009LF	Contacts Not Included	Black	125 °C	-65 ░C	1	9	500 V	Housing for Female Contacts	UL94 V-0	3 A	Polyester Thermoplastic Glass Filled	2.54 mm	0.1 in
Amphenol ICC (FCI) 67000-011LF	Contacts Not Included	Black	125 °C	-65 ░C	1	11	500 V	Housing for Female Contacts	UL94 V-0	3 A	Polyester Thermoplastic Glass Filled	2.54 mm	0.1 in
Amphenol ICC (FCI) 67000-010LF	Contacts Not Included	Black	125 °C	-65 ░C	1	10	500 V	Housing for Female Contacts	UL94 V-0	3 A	Polyester Thermoplastic Glass Filled	2.54 mm	0.1 in
Amphenol ICC (FCI) 67000-014LF	Contacts Not Included	Black	125 °C	-65 ░C	1	14	500 V	Housing for Female Contacts	UL94 V-0	3 A	Polyester Thermoplastic Glass Filled	2.54 mm	0.1 in
Amphenol ICC (FCI) 67000-024LF	Contacts Not Included	Black	125 °C	-65 ░C	1	24	500 V	Housing for Female Contacts	UL94 V-0	3 A	Polyester Thermoplastic Glass Filled	2.54 mm	0.1 in
Amphenol ICC (FCI) 67000-004LF	Contacts Not Included	Black	125 °C	-65 ░C	1	4	500 V	Housing for Female Contacts	UL94 V-0	3 A	Polyester Thermoplastic Glass Filled	2.54 mm	0.1 in

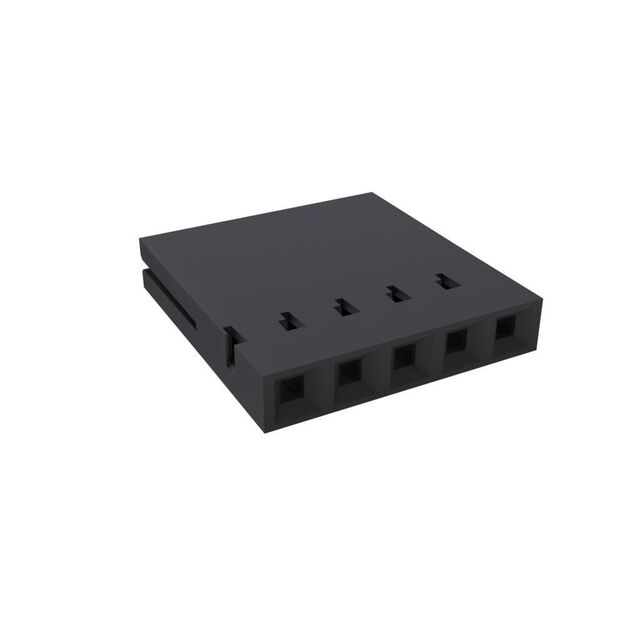

Amphenol ICC (FCI) 67000-005LF	Contacts Not Included	Black	125 °C	-65 ░C	1		500 V	Housing for Female Contacts	UL94 V-0	3 A	Polyester Thermoplastic Glass Filled	2.54 mm	0.1 in
