2243 Series
Manufacturer: Oupiin
Beta
⌘K

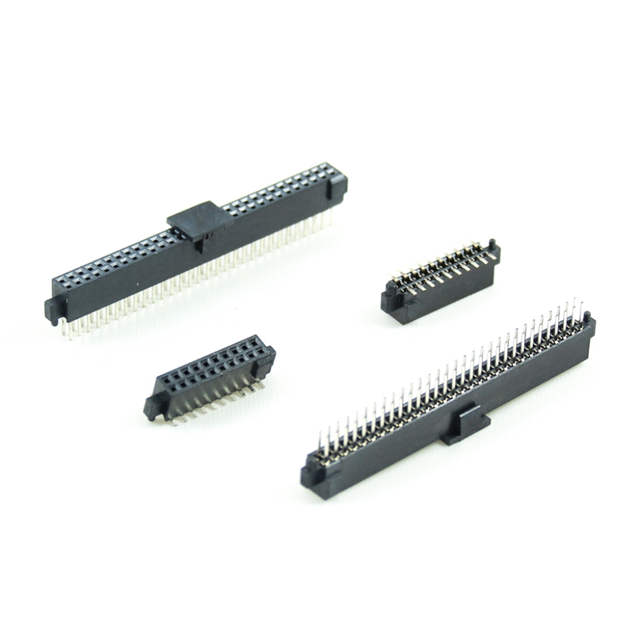

PCB SOCKET, 1.27MM PITCH, 30 PIN
| Part | Insulation Material | Contact Shape | Contact Finish Thickness - Post | Contact Material | Contact Finish Thickness - Mating | Connector Type | Fastening Type | Material Flammability Rating | Contact Finish - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Mounting Type | Pitch - Mating | Pitch - Mating | Row Spacing - Mating | Row Spacing - Mating | Contact Type | Contact Finish - Post | Insulation Height | Insulation Height | Number of Positions Loaded | Number of Rows [custom] | Termination | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Oupiin | Plastic | Square | Flash | Copper Alloy | Flash | Socket | Push-Pull | UL94 V-0 | Gold | -65 ░C | 125 °C | 30 | Surface Mount | 1.27 mm | 0.05 in | 0.05 in | 1.27 mm | Female Socket | Gold | 4.3 mm | 0.169 " | All | 2 | Solder | Board Guide |
