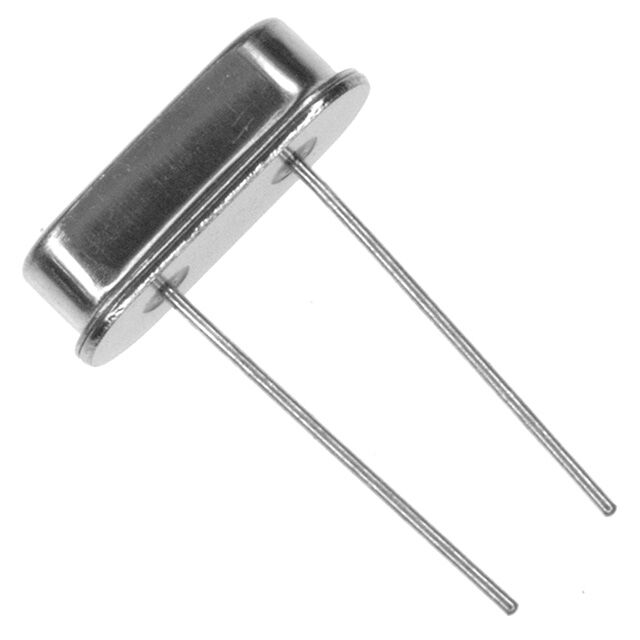

HCS-49USX Series

Manufacturer: ECS Inc.

Catalog

CRYSTAL 10.738635MHZ SERIES TH

Part	Frequency Tolerance	ESR (Equivalent Series Resistance)	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Mode	Frequency	Mounting Type	Type	Frequency Stability	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Load Capacitance
ECS Inc. ECS-107.3-S-4X	30 ppm	60 Ohms	HC-49/US	70 °C	-10 °C	0.138 "	3.5 mm	Fundamental	10.738635 MHz	Through Hole	MHz Crystal	50 ppm	0.183 "	11.35 mm	0.447 "	4.65 mm
ECS Inc. ECS-73-S-4X	30 ppm	80 Ohm	HC-49/US	70 °C	-10 °C	0.138 "	3.5 mm	Fundamental	7.3728 MHz	Through Hole	MHz Crystal	50 ppm	0.183 "	11.35 mm	0.447 "	4.65 mm
ECS Inc. ECS-120-S-4X	30 ppm	60 Ohms	HC-49/US	70 °C	-10 °C	0.138 "	3.5 mm	Fundamental	12 MHz	Through Hole	MHz Crystal	50 ppm	0.183 "	11.35 mm	0.447 "	4.65 mm
ECS Inc. ECS-42-12-4X	30 ppm	150 Ohms	HC-49/US	70 °C	-10 °C	0.138 "	3.5 mm	Fundamental	4.194304 MHz	Through Hole	MHz Crystal	50 ppm	0.183 "	11.35 mm	0.447 "	4.65 mm	12 pF
ECS Inc. ECS-480-18-4XEN	30 ppm	100 Ohms	HC-49/US	85 °C	-40 C	0.138 "	3.5 mm	3rd Overtone	48 MHz	Through Hole	MHz Crystal	50 ppm	0.183 "	11.35 mm	0.447 "	4.65 mm	18 pF
ECS Inc. ECS-65-20-4X	30 ppm	100 Ohms	HC-49/US	70 °C	-10 °C	0.138 "	3.5 mm	Fundamental	6.5 MHz	Through Hole	MHz Crystal	50 ppm	0.183 "	11.35 mm	0.447 "	4.65 mm	20 pF
ECS Inc. ECS-129.6-18-4X	30 ppm	60 Ohms	HC-49/US	70 °C	-10 °C	0.138 "	3.5 mm	Fundamental	12.96 MHz	Through Hole	MHz Crystal	50 ppm	0.183 "	11.35 mm	0.447 "	4.65 mm	18 pF
ECS Inc. ECS-250-18-4X-F	30 ppm	30 Ohm	HC-49/US	70 °C	-10 °C	0.138 "	3.5 mm	Fundamental	25 MHz	Through Hole	MHz Crystal	50 ppm	0.183 "	11.35 mm	0.447 "	4.65 mm	18 pF
ECS Inc. ECS-73-20-4XDN	30 ppm	80 Ohm	HC-49/US	85 °C	-40 C	0.138 "	3.5 mm	Fundamental	7.3728 MHz	Through Hole	MHz Crystal	100 ppm	0.183 "	11.35 mm	0.447 "	4.65 mm	20 pF
ECS Inc. ECS-240.001-18-4XEN	30 ppm	30 Ohm	HC-49/US	85 °C	-40 C	0.138 "	3.5 mm	Fundamental	24.00014 MHz	Through Hole	MHz Crystal	50 ppm	0.183 "	11.35 mm	0.447 "	4.65 mm	18 pF
