MAX9918 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K
-20V TO +75V INPUT RANGE, PRECISION UNI-/BIDIRECTIONAL, CURRENT-SENSE AMPLIFIERS
| Part | Voltage - Supply Span (Max) [Max] | Mounting Type | Current - Supply | Number of Circuits | Voltage - Input Offset | Operating Temperature [Max] | Operating Temperature [Min] | Slew Rate | Amplifier Type | -3db Bandwidth | Package / Case | Package / Case [y] | Package / Case [x] | Supplier Device Package | Output Type | Voltage - Supply Span (Min) [Min] | Qualification | Grade | Current - Output / Channel | Supplied Contents | Board Type | Current - Supply (Main IC) | Contents | Utilized IC / Part | Voltage - Supply, Single/Dual (±) [Max] | Voltage - Supply, Single/Dual (±) [Min] | Channels per IC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices Inc./Maxim Integrated | 5.5 V | Surface Mount | 1 mA | 1 | 400 µV | 125 °C | -40 C | 0.6 V/µs | Current Sense | 75 kHz | 8-SOIC Exposed Pad | 3.9 mm | 0.154 in | 8-SOIC-EP | Rail-to-Rail | 4.5 V | |||||||||||
 Analog Devices Inc./Maxim Integrated | 5.5 V | Surface Mount | 1 mA | 1 | 400 µV | 125 °C | -40 C | 0.6 V/µs | Current Sense | 75 kHz | 8-SOIC Exposed Pad | 3.9 mm | 0.154 in | 8-SOIC-EP | Rail-to-Rail | 4.5 V | AEC-Q100 | Automotive | 44 mA | ||||||||

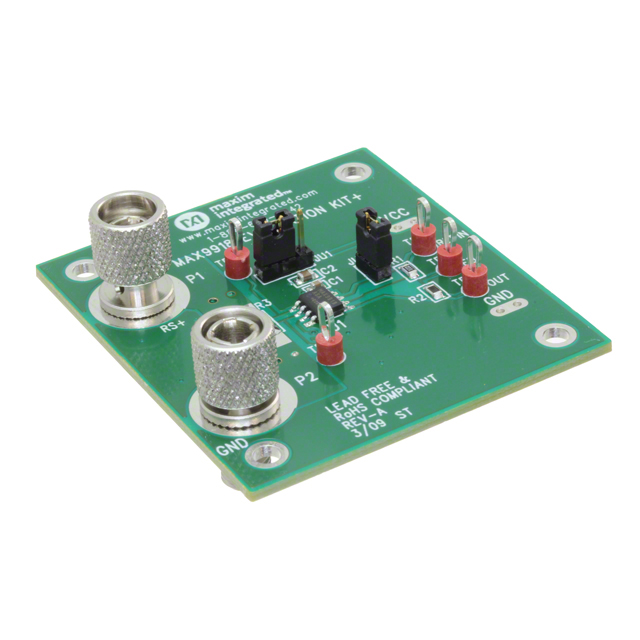

 Analog Devices Inc./Maxim Integrated | 0.6 V/µs | Current Sense | 75 kHz 75 kHz | Rail-to-Rail Single-Ended | Board(s) | Fully Populated | 1 mA | Board(s) | MAX9918 | 5.5 V | 4.5 V | 1 | |||||||||||||||
Analog Devices Inc./Maxim Integrated | 5.5 V | Surface Mount | 1 mA | 1 | 400 µV | 125 °C | -40 C | 0.6 V/µs | Current Sense | 75 kHz | 8-SOIC Exposed Pad | 3.9 mm | 0.154 in | 8-SOIC-EP | Rail-to-Rail | 4.5 V |
