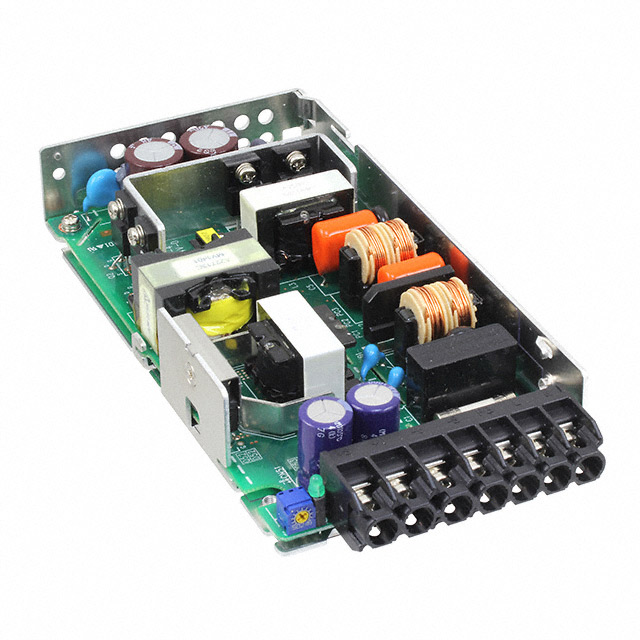

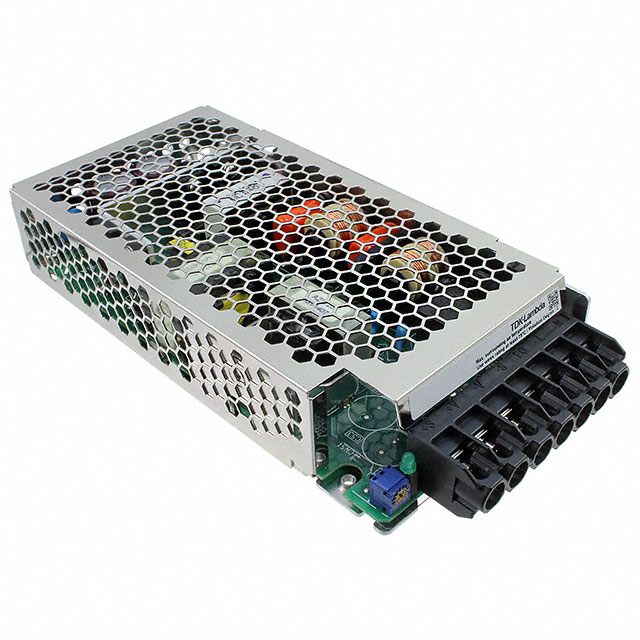

HWS100 Series
Manufacturer: TDK Corporation
Beta
⌘K
SWITCHING POWER SUPPLIES 15VOUT 7A 105W MEDICAL 115-230VAC
| Part | Voltage - Input [Max] | Voltage - Input [Min] | Voltage - Output 1 | Power (Watts) | Type | Efficiency | Approval Agency | Applications | Voltage - Isolation | Number of Outputs | Features | Current - Output 1 | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TDK Corporation | 265 VAC | 85 VAC | 15 V | 100 W | Open Frame | 88 % | CE | ITE (Commercial) Medical | 3000 V | 1 | Adjustable Output DC Input Capable Remote Sense Universal Input | 7 A | Chassis Mount | 70 °C | -10 °C | 6.32 in | 3.27 " | 33.5 mm | 83 mm | 1.32 in | 160.5 mm | ||
 TDK Corporation | 265 VAC 370 VDC | 85 VAC 120 VDC | 5 V | 100 W | Enclosed | 86 % | CE | Industrial ITE (Commercial) | 3000 V | 1 | Adjustable Output Remote On/Off Remote Sense Universal Input | 20 A | Chassis Mount | 70 °C | -10 °C | ||||||||
 TDK Corporation | 264 VAC 370 VDC | 85 VAC 120 VDC | 15 V | 100 W | Enclosed | 86 % | CE | Industrial ITE (Commercial) | 3000 V | 1 | Adjustable Output Remote Sense Universal Input | 7 A | Chassis Mount | 70 °C | -10 °C | 6.32 in | 3.27 " | 33.5 mm | 83 mm | 1.32 in | 160.5 mm | ||
 TDK Corporation | 264 VAC 370 VDC | 85 VAC 120 VDC | 3.3 V | 100 W | Enclosed | 81 % | CE | Industrial ITE (Commercial) | 3000 V | 1 | Adjustable Output Remote Sense Universal Input | 20 A | Chassis Mount | 70 °C | -10 °C | 6.32 in | 3.27 " | 33.5 mm | 83 mm | 1.32 in | 160.5 mm | ||
 TDK Corporation | 265 VAC 370 VDC | 85 VAC 120 VDC | 15 V | 105 W | Open Frame Conformal Coated | 88 % | CE | ITE (Commercial) | 3000 V | 1 | Adjustable Output PFC Universal Input | 7 A | Chassis Mount | 71 °C | -10 °C | 6.32 in | 3.27 " | 1.12 in | 160.5 mm | 28.5 mm | 83 mm | ||
TDK Corporation | 265 VAC 370 VDC | 85 VAC 120 VDC | 48 V | 101 W | Enclosed | 90 % | CE | Industrial ITE (Commercial) | 3000 V | 1 | Adjustable Output Remote Sense Universal Input | 2.1 A | Chassis Mount | 70 °C | -10 °C | ||||||||
 TDK Corporation | 265 VAC | 85 VAC | 5 V | 100 W | Open Frame | 86 % | CE | ITE (Commercial) | 3000 V | 1 | Adjustable Output DC Input Capable PFC Remote Sense Universal Input | 20 A | Chassis Mount | 70 °C | -10 °C | 6.32 in | 3.27 " | 33.5 mm | 83 mm | 1.32 in | 160.5 mm | ||
 TDK Corporation | 265 VAC | 85 VAC | 12 V | 100 W | Open Frame | 88 % | CE | ITE (Commercial) Medical | 3000 V | 1 | Adjustable Output DC Input Capable PFC Remote Sense Universal Input | Chassis Mount | 70 °C | -10 °C | 6.32 in | 3.27 " | 33.5 mm | 83 mm | 1.32 in | 160.5 mm | |||
 TDK Corporation | 265 VAC 370 VDC | 85 VAC 120 VDC | 24 V | 108 W | Conformal Coated Enclosed | 89 % | CE cURus DEMKO | ITE (Commercial) | 3000 V | 1 | Adjustable Output Remote Sense Universal Input | 4.5 A | Chassis Mount | 71 °C | -10 °C | 6.32 in | 3.27 " | 1.12 in | 160.5 mm | 28.5 mm | 83 mm | ||
TDK Corporation | 265 VAC 370 VDC | 85 VAC 120 VDC | 15 V | 105 W | Enclosed | 88 % | CE | Industrial ITE (Commercial) | 3000 V | 1 | Adjustable Output Remote On/Off Remote Sense Universal Input | 7 A | Chassis Mount | 70 °C | -10 °C |
