MP 3-X2 Series

Manufacturer: WIMA

Catalog

SAFETY CAPACITORS 0.01 UF 250 VAC 20%

Part	Applications	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Mounting Type	Dielectric Material	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Package / Case	Voltage Rating - AC	Features	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Ratings	Lead Spacing	Lead Spacing	Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]

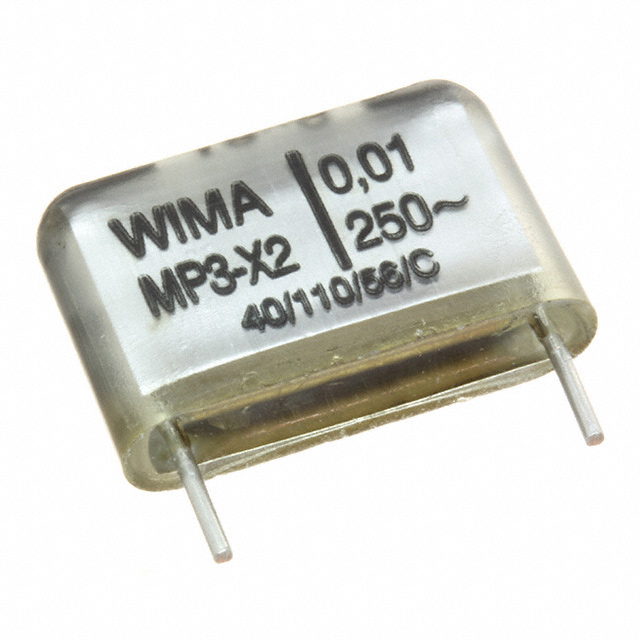

WIMA MPX20W2100FC00MSSD	EMI RFI Suppression	20 %	-40 C	110 °C	PC Pins	Through Hole	Metallized Paper	19 mm	0.748 in	0.197 "	5 mm	Radial	250 V	Low ESR	0.512 "	13 mm	X2	15 mm	0.591 in	10000 pF

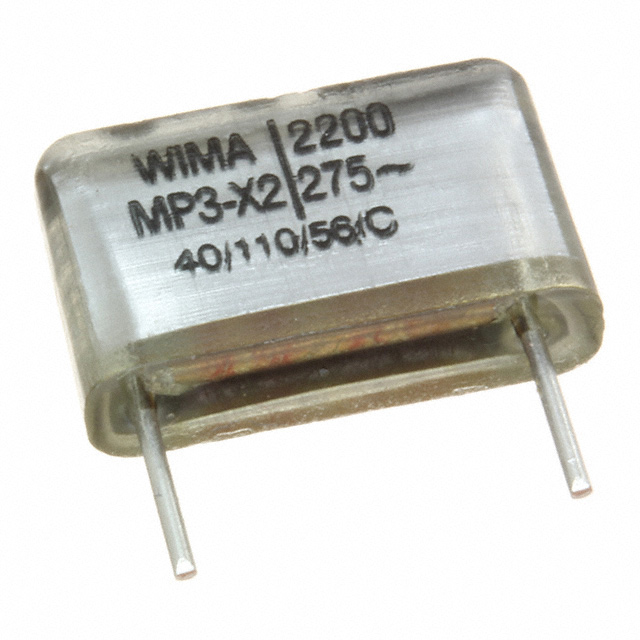

WIMA MPX21W1220FA00MSSD	EMI RFI Suppression	20 %	-40 C	110 °C	PC Pins	Through Hole	Metallized Paper	13.5 mm	0.531 in	0.157 "	4 mm	Radial	275 V				X2	10 mm	0.394 in	2200 pF	0.335 "	8.5 mm
