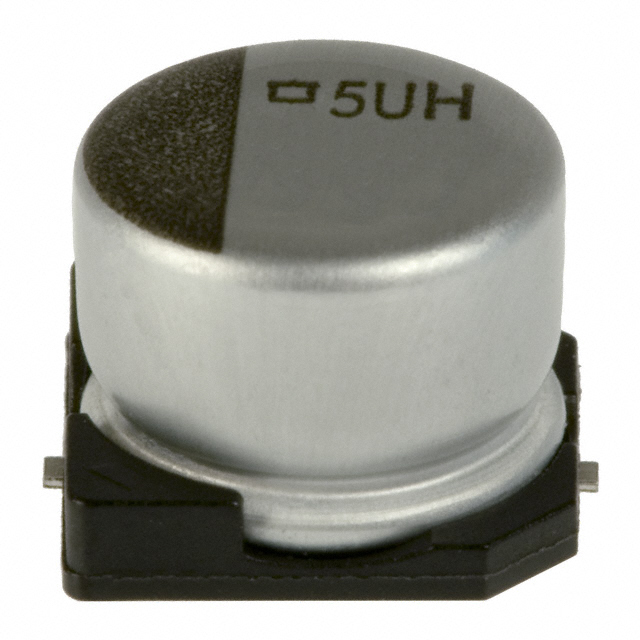

MVH Series

Manufacturer: Chemi-Con

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - SMD 50VDC 33UF TOL 20% 8X10MM AEC-Q200

Part	Tolerance	Ripple Current @ High Frequency	Ripple Current @ Low Frequency	Capacitance	Lifetime @ Temp.	ESR (Equivalent Series Resistance)	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Polarization	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Voltage - Rated	Applications	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Ratings	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]
Chemi-Con EMVH500ARA330MHA0G	20 %	160 mA	148.8 mA	33 ÁF	2000 Hrs	700 mOhm	Surface Mount	125 °C	-40 C	Polar	8.3 mm	8.3 mm	0.327 in	0.327 in	50 VDC	Automotive	0.315 in	8 mm	Radial Can - SMD	10 mm	0.394 in
Chemi-Con EMVH800ARA220MJA0G	20 %	115 mA	106.95 mA	22 µF	2000 Hrs	550 mOhm	Surface Mount	125 °C	-40 C	Polar	10.3 mm	10.3 mm	0.406 "	0.406 in	80 V	Automotive	0.394 in	10 mm	Radial Can - SMD	10.5 mm	0.413 "	AEC-Q200
Chemi-Con EMVH630ARA100MF80G	20 %	60 mA	39.6 mA	10 µF	1000 Hrs	2000 mOhm	Surface Mount	125 °C	-40 C	Polar	6.6 mm	6.6 mm	0.26 in	0.26 in	63 V	Automotive	0.248 "	6.3 mm	Radial Can - SMD		0.303 in		7.7 mm
Chemi-Con EMVH350ARA470MHA0G	20 %	220 mA	204.6 mA	47 µF	2000 Hrs	400 mOhm	Surface Mount	125 °C	-40 C	Polar	8.3 mm	8.3 mm	0.327 in	0.327 in	35 V	Automotive	0.315 in	8 mm	Radial Can - SMD	10 mm	0.394 in
Chemi-Con EMVH160ARA331MJA0G	20 %	296 mA	275.28 mA	330 µF	2000 Hrs	300 mOhm	Surface Mount	125 °C	-40 C	Polar	10.3 mm	10.3 mm	0.406 "	0.406 in	16 V	Automotive	0.394 in	10 mm	Radial Can - SMD	10.5 mm	0.413 "	AEC-Q200
Chemi-Con EMVH630ARA331MLH0S	20 %	820 mA	410 mA	330 µF	5000 Hrs	180 mOhm	Surface Mount	125 °C	-40 C	Polar	17 mm	17 mm	0.669 in	0.669 in	63 V	Automotive	0.63 in	16 mm	Radial Can - SMD	17 mm		AEC-Q200		0.669 "

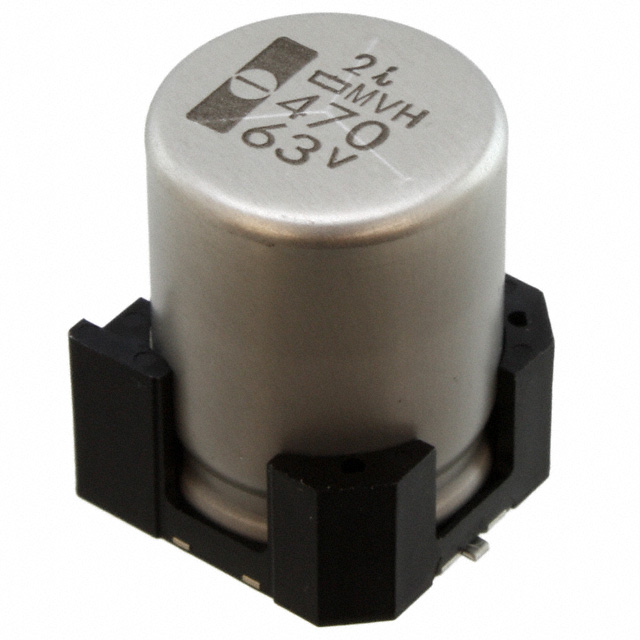

Chemi-Con EMVH630GTR471MLN0S	20 %	1.1 A		470 µF	5000 Hrs	110 mOhm	Surface Mount	125 °C	-40 C	Polar	17 mm	17 mm	0.669 in	0.669 in	63 V	Automotive	0.63 in	16 mm	Radial Can - SMD						0.866 in	22 mm
Chemi-Con EMVH800ARA220MHA0G	20 %	70 mA	65.1 mA	22 µF	2000 Hrs	750 mOhm	Surface Mount	125 °C	-40 C	Polar	8.3 mm	8.3 mm	0.327 in	0.327 in	80 V	Automotive	0.315 in	8 mm	Radial Can - SMD	10.5 mm	0.413 "	AEC-Q200
