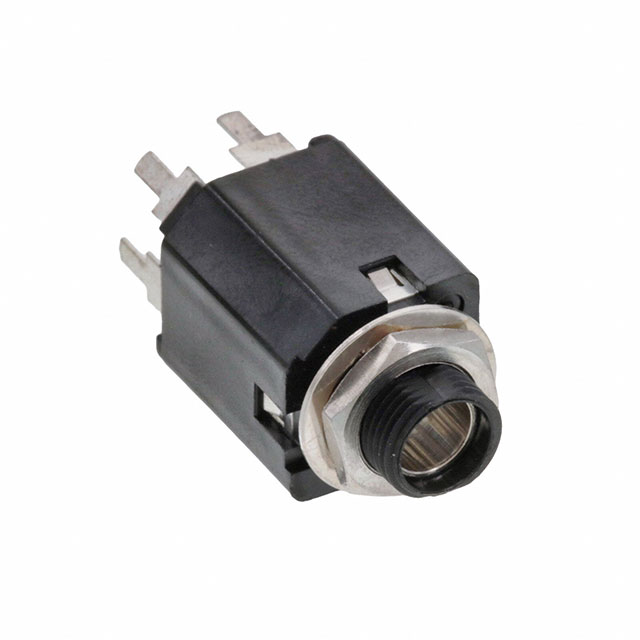

N114BP Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K
CONN PHONE JACK F 3 POS SOLDER ST THRU-HOLE 5 TERMINAL 1 PORT
| Part | Body Color | Contact Material | Housing Material | Voltage - Rated | Current Rating (Amps) | Thread Size | Panel Hole Size | Panel Hole Size | Includes | Contact Material - Plating | Gender | Internal Switch(s) | Mounting Type | Actual Diameter [diameter] | Actual Diameter [diameter] | Connector Type | Features | Signal Lines | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Shielding | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | Black | Brass | Polyester Glass Filled | 48 VDC | 0.25 A | 3/8"-32 | 9.52 mm | 0.375 in | 1 Nut 1 Washer 3 pcs - 1 Connector | Tin | Female | Two Switches | Panel Mount Through Hole | 0.25 in | 6.35 mm | Phone Jack | Mounting Hardware Thread Lock | Stereo (3 Conductor TRS) | 5 | 3 | Unshielded | Solder |
