AWG28-50 Series

Catalog

CBL RIBN 50COND 0.039 MULT 10'

Part	Conductor Material	Insulation Resistance	Length	Length	Jacket (Insulation) Material	Length [x]	Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Jacket Color	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Shielding	Number of Conductors	Cable Type	Ratings	Ribbon Width [custom]	Ribbon Width [custom]	Ribbon Thickness	Ribbon Thickness	Wire Gauge	Pitch	Pitch	First Conductor Mark	Operating Temperature	Length	Spool Size [x]	Spool Size [x]

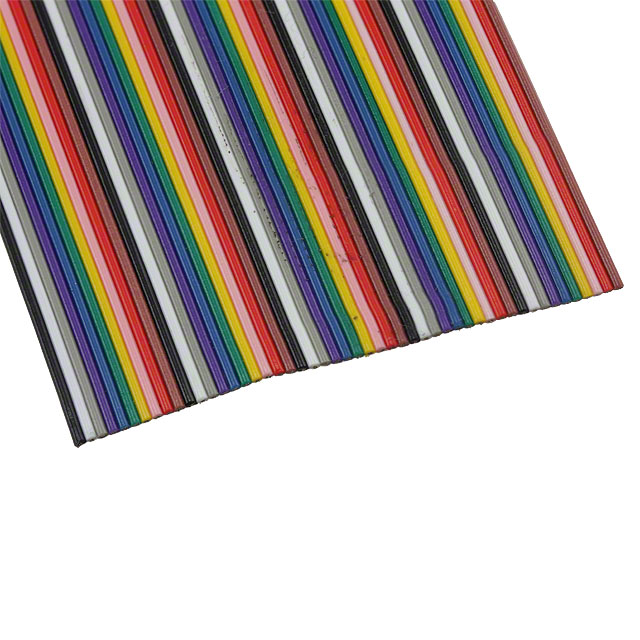

Assmann WSW Components AWG28-50/F-1/300	Copper Tinned	100 MOhms	3.05 m 7.62 m 30.48 m 91440 mm	10 ft 25 ft 100 ' 3600 in	Poly-Vinyl Chloride (PVC)	50 ft	15.24 m	-10 °C	105 ░C	Multiple	300 VDC	36 AWG	7 Strands	Unshielded	50	Flat Cable	UL Style 2651	1.969 in	50.01 mm	0.89 mm	0.035 in	28 AWG	1 mm	0.039 in

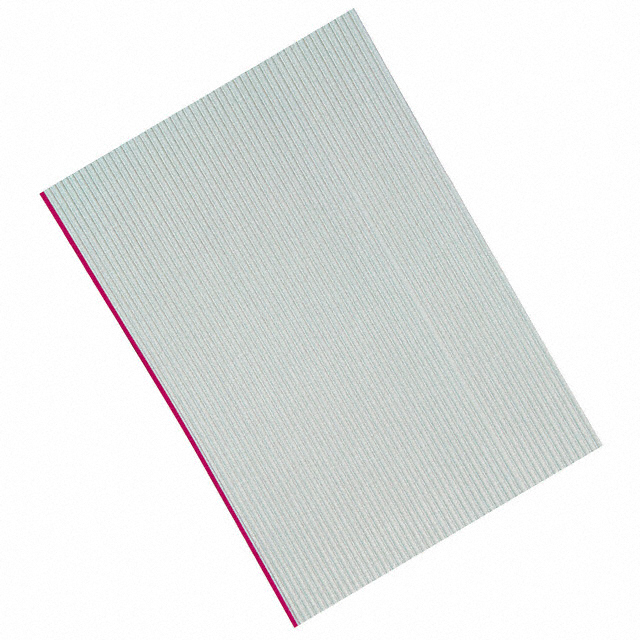

Assmann WSW Components AWG28-50/G/300	Copper Tinned	100 MOhms	3.05 m 7.62 m 30.48 m 91440 mm	10 ft 25 ft 100 ' 3600 in	Poly-Vinyl Chloride (PVC)	50 ft	15.24 m	-10 °C	105 ░C	Gray	300 VDC	36 AWG	7 Strands	Unshielded	50	Flat Cable	UL Style 2651	2.5 in	63.5 mm	0.89 mm	0.035 in	28 AWG	1.27 mm	0.05 in	Red

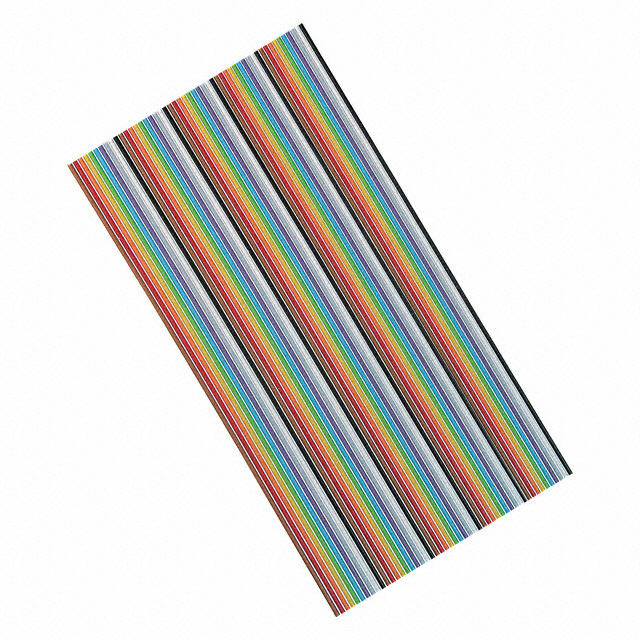

Assmann WSW Components AWG28-50/F/300	Copper Tinned	100 MOhms	3.05 m 7.62 m 30.48 m 91440 mm	10 ft 25 ft 100 ' 3600 in	Poly-Vinyl Chloride (PVC)	50 ft	15.24 m			Multiple	300 VDC	36 AWG	7 Strands	Unshielded	50	Flat Cable	UL Style 2651	2.5 in	63.5 mm	0.89 mm	0.035 in	28 AWG	1.27 mm	0.05 in	Red	105 C

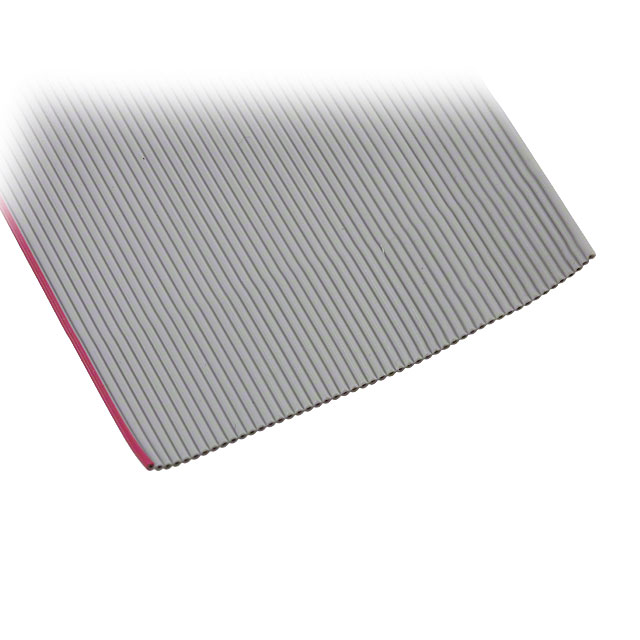

Assmann WSW Components AWG28-50/G-1/300	Copper Tinned	100 MOhms	3.05 m 7.62 m 30.48 m 91440 mm	10 ft 25 ft 100 ' 3600 in	Poly-Vinyl Chloride (PVC)	50 ft	15.24 m	-10 °C	105 ░C	Gray	300 VDC	36 AWG	7 Strands	Unshielded	50	Flat Cable	UL Style 2651	1.969 in	50.01 mm	0.89 mm	0.035 in	28 AWG	1 mm	0.039 in	Red		Enter Number of Feet in Order Quantity	300 ft	91.44 m
