AEP170 Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K

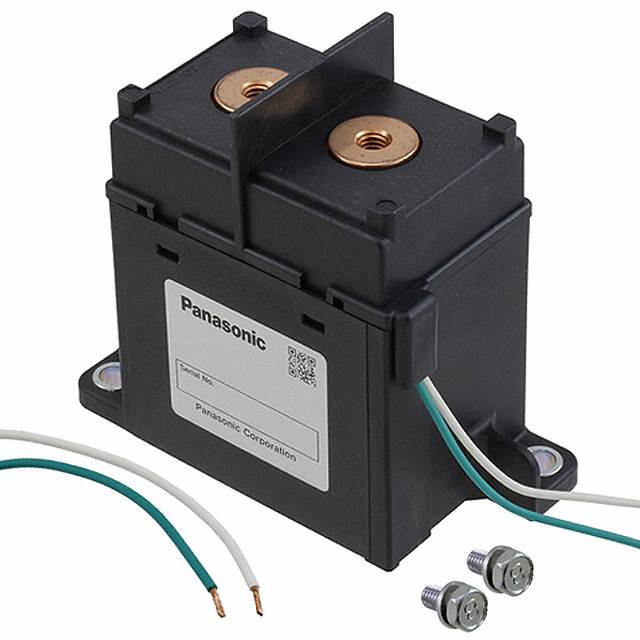

POWER RELAY, SPST-NO, 24 VDC, 200 A, EP(AEP) SERIES, PANEL MOUNT, NON LATCHING
| Part | Coil Resistance | Release Time | Contact Form | Coil Type | Operate Time | Coil Voltage | Mounting Type | Contact Rating (Current) | Coil Current | Termination Style | Relay Type | Load - Max Switching | Operating Temperature [Max] | Operating Temperature [Min] | Must Release Voltage | Must Operate Voltage | Switching Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | 96 Ohms | 30 ms | SPST-NO (1 Form A) | Non Latching | 50 ms | 24 VDC | Chassis Mount | 200 A | 250 mA | Screw Terminal Wire Leads | General Purpose | 55400 VA | 80 °C | -40 C | 2 VDC | 18 VDC | 277 VAC 400 VDC |
Panasonic Electronic Components | 24 Ohms | 30 ms | SPST-NO (1 Form A) | Non Latching | 50 ms | 12 VDC | Chassis Mount | 200 A | 500 mA | Screw Terminal Wire Leads | General Purpose | 55400 VA | 80 °C | -40 C | 1 VDC | 9 VDC | 277 VAC 400 VDC |
