XTL Series

Manufacturer: RFMi

Catalog

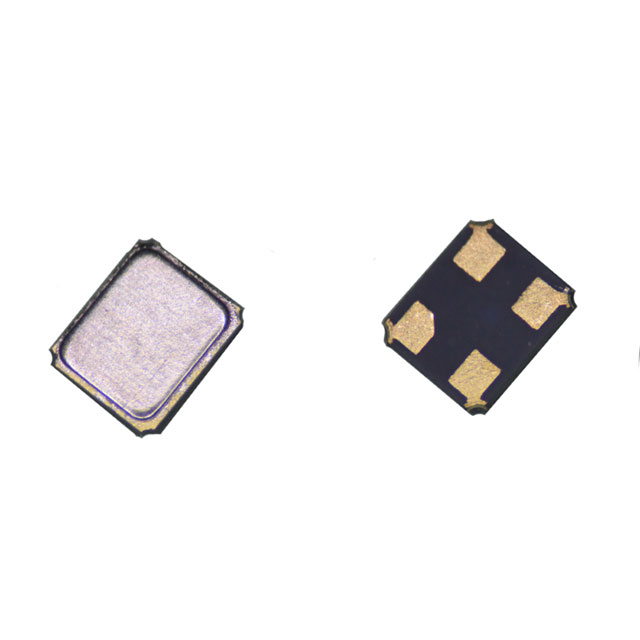

CRYSTALS 76.8 MHZ SM1210-4 -12 / +14 PPM SMD/SMT - 40 C TO + 105 C

Part	Operating Mode	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Type	Package / Case	Frequency Tolerance	Frequency Stability [Max]	Frequency Stability [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	ESR (Equivalent Series Resistance)	Load Capacitance	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Frequency
RFMi XTL2003	Fundamental	1.05 mm	0.041 in	1.25 mm	0.049 in	MHz Crystal	4-SMD No Lead	4 ppm	14 ppm	-12 ppm	0.35 mm	0.014 "	30 Ohm	9.16 pF	Surface Mount	-40 C	105 ░C	76.8 MHz
RFMi XTL2003	Fundamental	1.05 mm	0.041 in	1.25 mm	0.049 in	MHz Crystal	4-SMD No Lead	4 ppm	14 ppm	-12 ppm	0.35 mm	0.014 "	30 Ohm	9.16 pF	Surface Mount	-40 C	105 ░C	76.8 MHz
