87606 Series

Catalog

CONN RCPT 48POS 0.1 TIN PCB

...

Part	Number of Positions Loaded	Material Flammability Rating	Connector Type	Insulation Height	Insulation Height	Contact Shape	Number of Rows	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Applications	Termination	Pitch - Mating	Pitch - Mating	Insulation Color	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Fastening Type	Mounting Type	Contact Type	Contact Length - Post	Contact Length - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Mating
Amphenol ICC (FCI) 87606-424LF	All	UL94 V-0	Receptacle	0.335 "	8.51 mm	Square	2	Phosphor Bronze	2 çm	78.7 çin	Automotive General Purpose Industrial Telecommunications	Solder	0.1 in	2.54 mm	Blue	Tin	78.7 µin	2 µm	48	Push-Pull	Through Hole	Female Socket	0.114 in	2.9 mm	2.54 mm	0.1 in
Amphenol ICC (FCI) 87606-322LF	All	UL94 V-0	Receptacle	0.335 "	8.51 mm	Square	2	Phosphor Bronze	2 çm	78.7 çin	Automotive General Purpose Industrial Telecommunications	Solder	0.1 in	2.54 mm	Blue	Tin	30 Áin	0.76 Ám	44	Push-Pull	Through Hole	Female Socket	0.114 in	2.9 mm	2.54 mm	0.1 in	Gold
Amphenol ICC (FCI) 87606-610	All	UL94 V-0	Receptacle	0.335 "	8.51 mm	Square	2	Phosphor Bronze			Automotive General Purpose Industrial Telecommunications	Solder	0.1 in	2.54 mm	Blue				20	Push-Pull	Through Hole	Female Socket	0.114 in	2.9 mm	2.54 mm	0.1 in

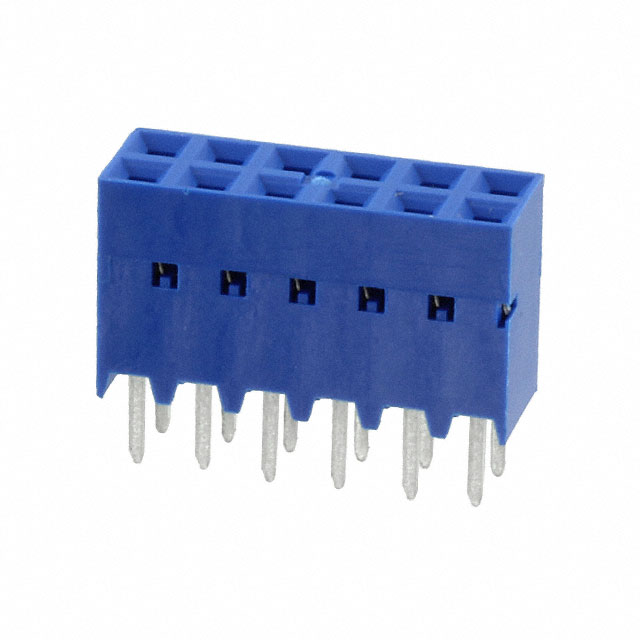

Amphenol ICC (FCI) 87606-806LF	All	UL94 V-0	Receptacle	0.335 "	8.51 mm	Square	2	Phosphor Bronze	2 çm	78.7 çin	Automotive General Purpose Industrial Telecommunications	Solder	0.1 in	2.54 mm	Blue	Tin	15 µin	0.38 µm	12	Push-Pull	Through Hole	Female Socket	0.114 in	2.9 mm	2.54 mm	0.1 in	Gold
Amphenol ICC (FCI) 87606-410HLF	All	UL94 V-0	Receptacle	0.335 "	8.51 mm	Square	2	Phosphor Bronze	2 çm	78.7 çin	Automotive General Purpose Industrial Telecommunications	Solder	0.1 in	2.54 mm	Gray	Tin	78.7 µin	2 µm	20	Push-Pull	Through Hole	Female Socket	0.114 in	2.9 mm	2.54 mm	0.1 in
Amphenol ICC (FCI) 87606-345	All	UL94 V-0	Receptacle	0.335 "	8.51 mm	Square	2	Phosphor Bronze	2 çm	78.7 çin	Automotive General Purpose Industrial Telecommunications	Solder	0.1 in	2.54 mm	Blue	Tin	30 Áin	0.76 Ám	90	Push-Pull	Through Hole	Female Socket	0.114 in	2.9 mm	2.54 mm	0.1 in	Gold

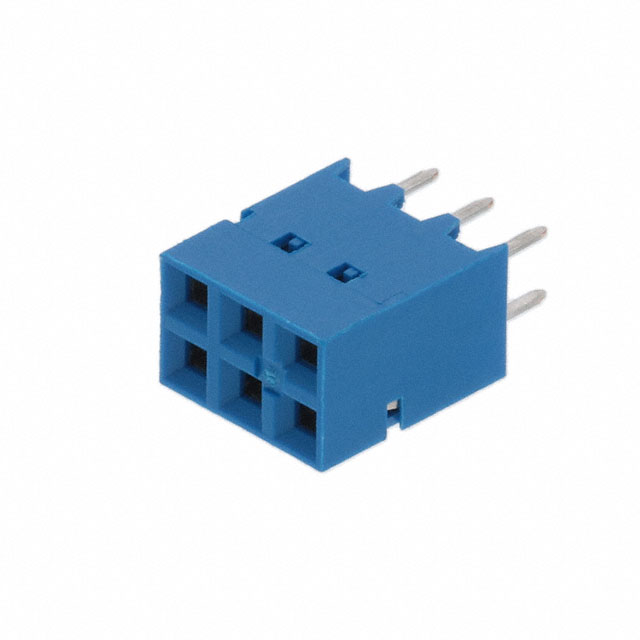

Amphenol ICC (FCI) 87606-303LF	All	UL94 V-0	Receptacle	0.335 "	8.51 mm	Square	2	Phosphor Bronze	2 çm	78.7 çin	Automotive General Purpose Industrial Telecommunications	Solder	0.1 in	2.54 mm	Blue	Tin	30 Áin	0.76 Ám	6	Push-Pull	Through Hole	Female Socket	0.114 in	2.9 mm	2.54 mm	0.1 in	Gold
Amphenol ICC (FCI) 87606-313	All	UL94 V-0	Receptacle	0.335 "	8.51 mm	Square	2	Phosphor Bronze	2 çm	78.7 çin	Automotive General Purpose Industrial Telecommunications	Solder	0.1 in	2.54 mm	Blue	Tin	30 Áin	0.76 Ám	26	Push-Pull	Through Hole	Female Socket	0.114 in	2.9 mm	2.54 mm	0.1 in	Gold
Amphenol ICC (FCI) 87606-420	All	UL94 V-0	Receptacle	0.335 "	8.51 mm	Square	2	Phosphor Bronze	2 çm	78.7 çin	Automotive General Purpose Industrial Telecommunications	Solder	0.1 in	2.54 mm	Blue	Tin-Lead	78.7 µin	2 µm	40	Push-Pull	Through Hole	Female Socket	0.114 in	2.9 mm	2.54 mm	0.1 in	Tin-Lead
Amphenol ICC (FCI) 87606-813LF	All	UL94 V-0	Receptacle	0.335 "	8.51 mm	Square	2	Phosphor Bronze	2 çm	78.7 çin	Automotive General Purpose Industrial Telecommunications	Solder	0.1 in	2.54 mm	Blue	Tin	15 µin	0.38 µm	26	Push-Pull	Through Hole	Female Socket	0.114 in	2.9 mm	2.54 mm	0.1 in	Gold
