430857 Series

Catalog

PELTIER UT15,288,F2,5252,TA,RTW6

Part	Current - Max [Max]	Number of Stages	Delta Tmax @ Th	Qmax @ Th	Height [z]	Voltage - Max [Max]	Size / Dimension [x]	Size / Dimension [y]	Features	Resistance	Operating Temperature

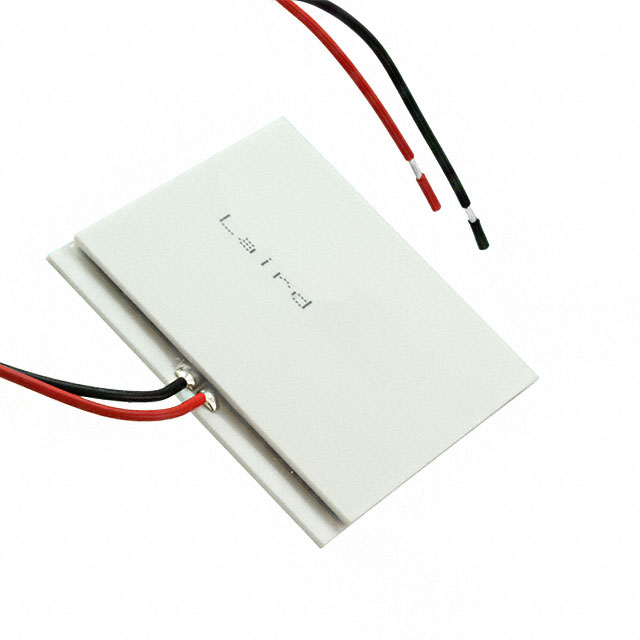

Laird Thermal Systems, Inc. 430857-501	15.4 A	1	68 °C	340.6 W	3.3 mm	36 V	52 mm	52 mm	Lead Wires Sealed - Silicone RTV	1.97 Ohms	80 °C

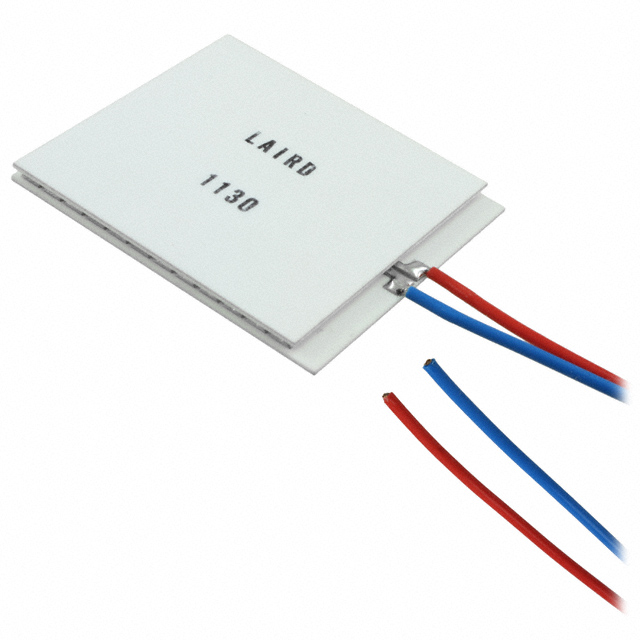

Laird Thermal Systems, Inc. 430857-500	15.4 A	1	68 °C	340.6 W	3.3 mm	36 V	52 mm	52 mm	Lead Wires Non-Sealed	1.97 Ohms	80 °C
