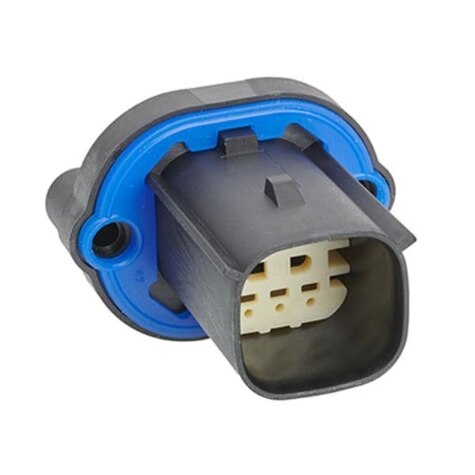

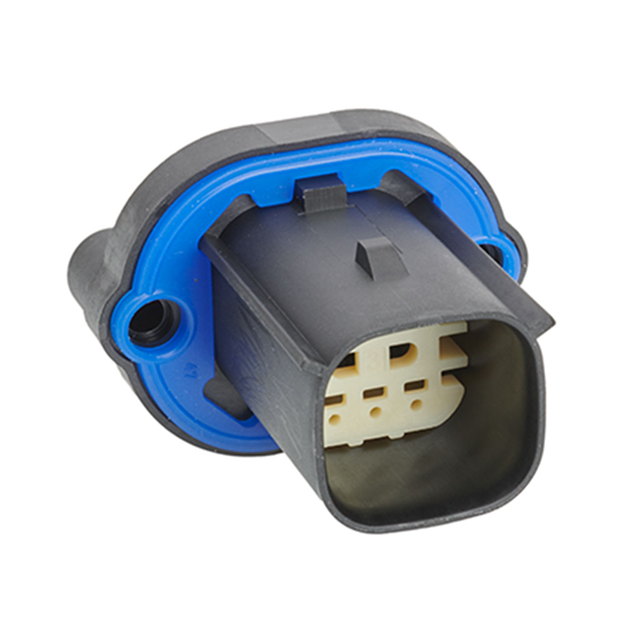

MX150 Panel Mount Male Connector Assembly, Dual Row, 6 Circuits, Keying Option C, Dark Gray Housing, Silicone Gasket
MX150 Panel Mount Male Connector Assembly, Dual Row, 6 Circuits, Keying Option C, Dark Gray Housing, Silicone Gasket
MX150 Panel Mount Male Connector Assembly, Dual Row, 6 Circuits, Keying Option C, Dark Gray Housing, Silicone Gasket
| Part | Pitch [x] | Pitch [x] | Contact Termination | Features | Fastening Type | Number of Rows | Connector Type | Color | Number of Positions | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Material | Note |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 3.5 mm | 0.138 in | Crimp | Gasket Terminal Position Lock (TPA) | Locking Ramp | 2 | Plug | Gray | 6 | Male Blade | 125 °C | -40 °C | Glass Filled Nylon 4/6 Polyamide (PA46) | |
 Molex | 3.5 mm | 0.138 in | Crimp | Terminal Position Lock (TPA) | Locking Ramp | 2 | Plug | Black | 6 | Male Blade | 125 °C | -40 °C | Polyamide (PA6) Nylon 6 Glass Filled | Contacts Not Included |
