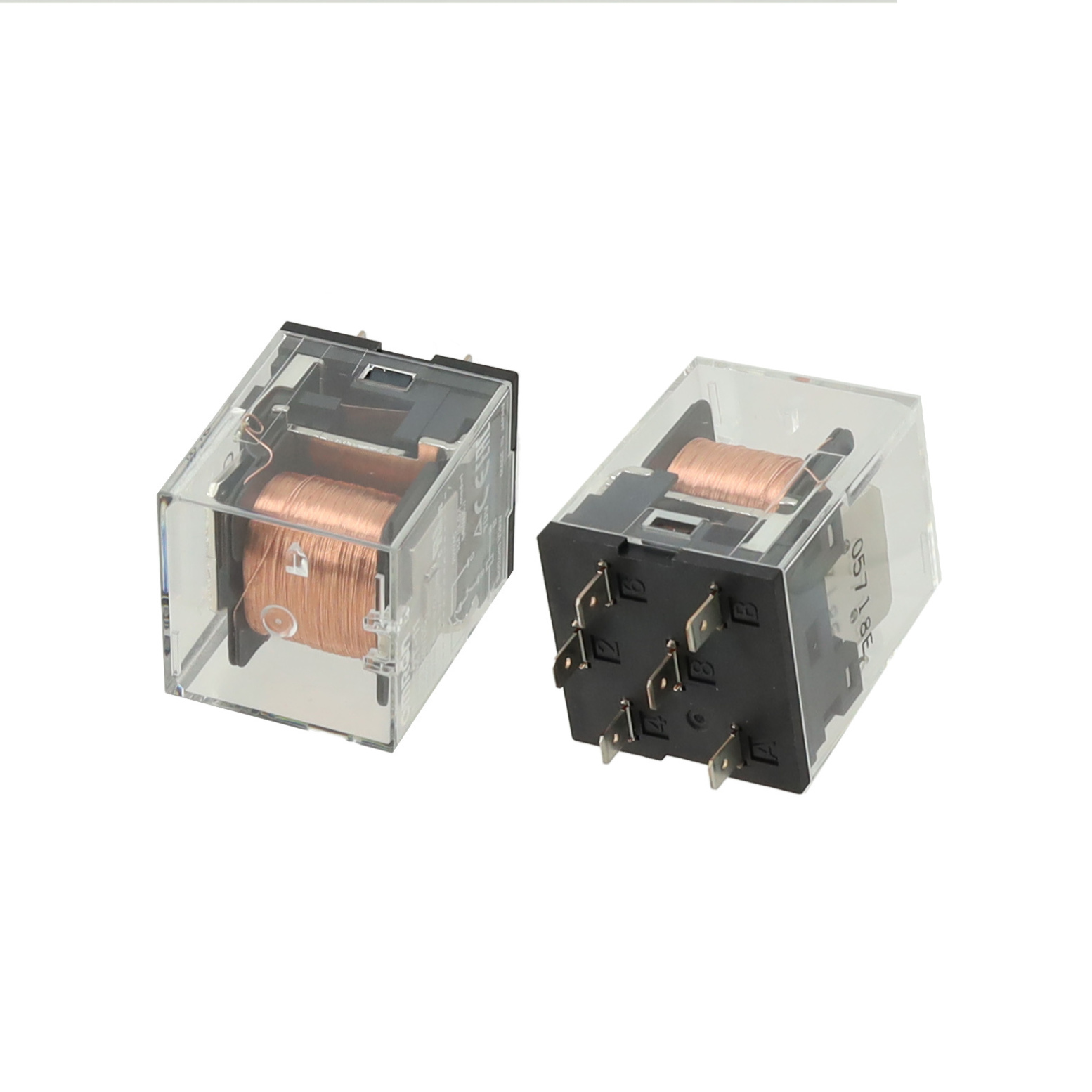

MKS2T Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE DPST 15A 230V
| Part | Contact Rating (Current) | Contact Material | Relay Type | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Contact Form | Approval Agency | Switching Voltage | Must Operate Voltage | Mounting Type | Coil Current | Coil Resistance | Coil Voltage | Coil Type | Operate Time | Must Release Voltage | Load - Max Switching | Release Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Omron Electronics Inc-EMC Div | 15 A | Silver Tin Indium (AgSnIn) | General Purpose | -40 °C | 60 °C | Plug In | DPST-NO/NC | cURus TUV | 250 VAC | 184 VAC | Socketable | 10 mA | 4.25 kOhms | 230 VAC | Non Latching | 20 ms | 69 VAC | 3750 VA | 20 ms |
 Omron Electronics Inc-EMC Div | 15 A | Silver Tin Indium (AgSnIn) | General Purpose | -40 °C | 60 °C | Plug In | DPST-NO/NC | cURus TUV | 250 VAC | 19.2 VDC | Socketable | 63.2 mA | 380 Ohms | 24 VDC | Non Latching | 30 ms | 3.6 VDC | 3750 VA | 20 ms |
