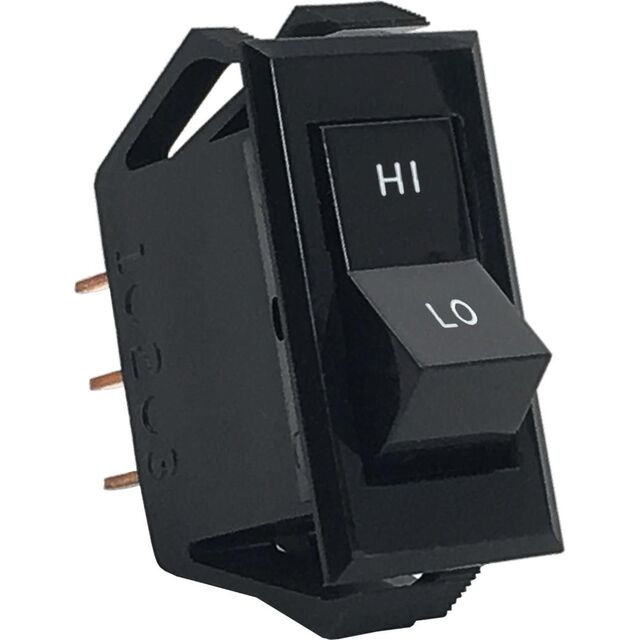

TA201 Series
Manufacturer: Carling Technologies
Beta
⌘K
ROCKER SWITCHES 1-POLE, ON - NONE - OFF, 10A/15A 250VAC/125VAC 3/4 HP, NON-ILLUMINATED BLACK ROCKER SWITCH WITH .250 TAB (Q.C.)
| Part | Electrical Life | Mounting Type | Circuit | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Voltage Rating - AC | Actuator Marking | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Actuator Type | Color - Actuator/Cap | Current Rating (Amps) | Approval Agency | Switch Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Carling Technologies | 50000 Cycles | Panel Mount Snap-In | SPST | 0 °C | 85 °C | Quick Connect - 0.250" (6.3mm) | 125 V | No Marking | 28.57 mm | 13.97 mm | Concave | Black | 15 A | cUL UL | On-Off |
 Carling Technologies | 50000 Cycles | Panel Mount Snap-In | SPST | 0 °C | 85 °C | Quick Connect - 0.250" (6.3mm) | 125 V | ON OFF | 28.57 mm | 13.97 mm | Concave | Black | 15 A | cUL UL | On-Off |
Carling Technologies | 50000 Cycles | Panel Mount Snap-In | SPST | 0 °C | 85 °C | Quick Connect - 0.250" (6.3mm) | 125 V | No Marking | 28.57 mm | 13.97 mm | Concave | White | 15 A | cUL UL | On-Off |
