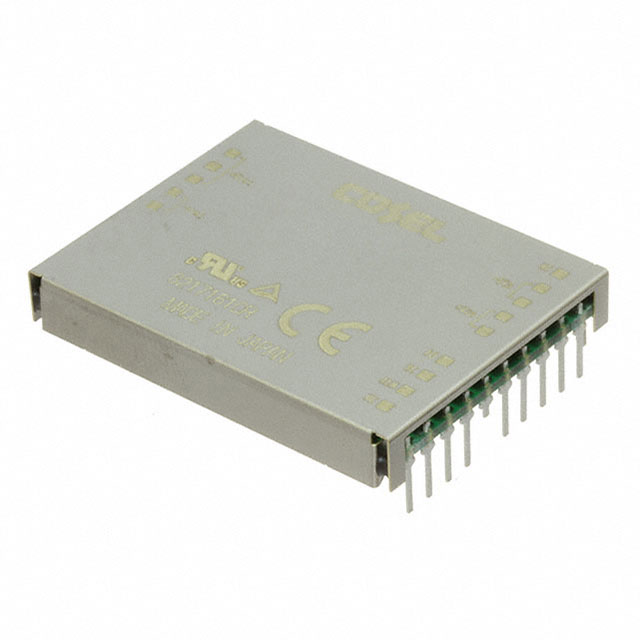

SFCS302412 Series
Manufacturer: Cosel USA, Inc.
Beta
⌘K
DC DC CONVERTER 12V 30W
| Part | Applications | Voltage - Input (Max) [Max] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Output 1 | Voltage - Input (Min) [Min] | Efficiency | Type | Current - Output (Max) [Max] | Number of Outputs | Package / Case | Voltage - Isolation | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cosel USA, Inc. | ITE (Commercial) | 36 V | 33.5 mm | 1.32 in | 39.3 mm | 1.55 " | 8.8 mm | 0.35 in | Surface Mount | -40 °C | 85 °C | 12 V | 18 V | 92 % | Isolated Module | 2.5 A | 1 | 20-SMD Module 17 Leads | 1000 V | 30 Watts |
 Cosel USA, Inc. | ITE (Commercial) | 36 V | 33.5 mm | 1.32 in | 39.3 mm | 1.55 " | 8.8 mm | 0.35 in | Through Hole | -40 °C | 85 °C | 12 V | 18 V | 92 % | Isolated Module | 2.5 A | 1 | 20-DIP Module 17 Leads | 1000 V | 30 Watts |
