ETQ-P1 Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K
FIXED IND 4.7UH 2.2A 168MOHM SMD
| Part | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Tolerance | Inductance | Mounting Type | Shielding | Package / Case | DC Resistance (DCR) | Inductance Frequency - Test | Current Rating (Amps) | Material - Core | Type | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

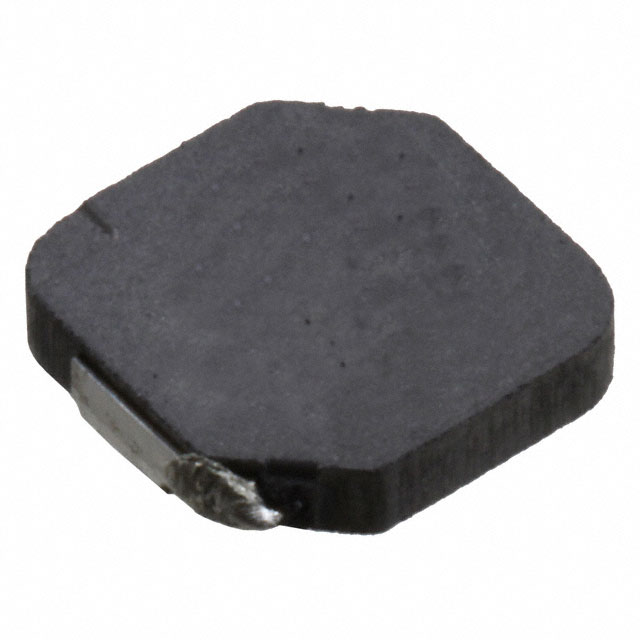

 Panasonic Industrial Automation Sales | 1.2 mm | 0.047 in | 0.216 " | 0.204 " | 5.49 mm | 5.18 mm | 20 % | 4.7 ÁH | Surface Mount | Shielded | 2-SMD J-Lead | 168 mOhm | 100 kHz | 2.2 A | |||
Panasonic Industrial Automation Sales | 1.2 mm | 0.047 in | 0.216 " | 0.204 " | 5.49 mm | 5.18 mm | 20 % | 3.3 µH | Surface Mount | Shielded | 2-SMD J-Lead | 103 mOhm | 100 kHz | 2.8 A | |||

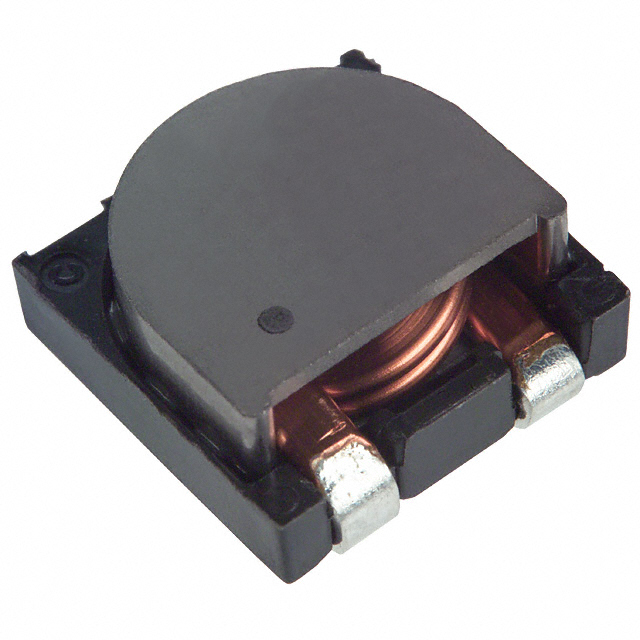

 Panasonic Industrial Automation Sales | 6 mm | 0.236 in | 0.512 in | 0.508 in | 13 mm | 12.9 mm | 20 % | 1 µH | Surface Mount | Shielded | Nonstandard | 1.56 mOhm | 100 kHz | 19 A | Ferrite | Drum Core Wirewound | 4 Lead |
