EN2C6F Series

Catalog

CIRCULAR CONNECTOR, EN2 SERIES, 6 CONTACTS, THERMOPLASTIC BODY

Part	Backshell Material, Plating	Orientation	Color	Primary Material	Fastening Type	Features	Contact Finish - Mating	Termination	Shielding	Applications	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Max]	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Contact Material	Insert Material	Ingress Protection	Number of Positions	Connector Type	Mounting Type
SWITCHCRAFT/CONXALL EN2C6F26G3	Thermoplastic	Keyed	Black	Plastic	Bayonet Lock	Backshell Coupling Nut	Gold	Crimp Solder Cup	Unshielded	Communication Systems Industrial Marine Medical	0.18 "	5.59 mm	4.57 mm	0.22 in	UL94 V-0	85 °C	-40 C	125 VAC	Copper Alloy	Elastomer	IP66 IP67 IP68	6	Plug Female Sockets	Free Hanging (In-Line)
SWITCHCRAFT/CONXALL EN2C6F26G1	Thermoplastic	Keyed	Black	Plastic	Bayonet Lock	Backshell Coupling Nut	Gold	Crimp Solder Cup	Unshielded	Communication Systems Industrial Marine Medical	0.1 "	3.56 mm	2.54 mm	0.14 in	UL94 V-0	85 °C	-40 C	125 VAC	Copper Alloy	Elastomer	IP66 IP67 IP68	6	Plug Female Sockets	Free Hanging (In-Line)
SWITCHCRAFT/CONXALL EN2C6F26G2	Thermoplastic	Keyed	Black	Plastic	Bayonet Lock	Backshell Coupling Nut	Gold	Crimp Solder Cup	Unshielded	Communication Systems Industrial Marine Medical	0.14 in	4.57 mm	3.56 mm	0.18 "	UL94 V-0	85 °C	-40 C	125 VAC	Copper Alloy	Elastomer	IP66 IP67 IP68	6	Plug Female Sockets	Free Hanging (In-Line)
SWITCHCRAFT/CONXALL EN2C6F26DCW	Thermoplastic	Keyed	Black	Plastic	Bayonet Lock	Backshell Coupling Nut Winged	Gold	Crimp Solder Cup	Unshielded	Communication Systems Industrial Marine Medical					UL94 V-0	85 °C	-40 C	125 VAC	Copper Alloy	Elastomer	IP66 IP67 IP68	6	Plug Female Sockets	Free Hanging (In-Line)

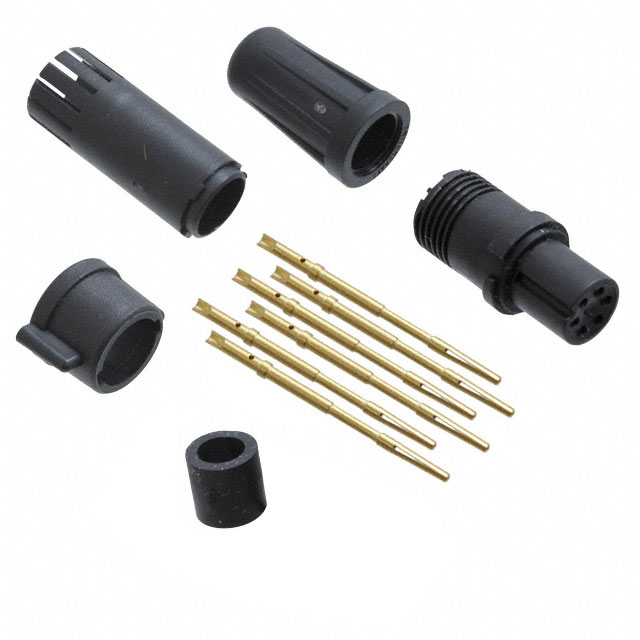

SWITCHCRAFT/CONXALL EN2C6F26G3W	Thermoplastic	Keyed	Black	Plastic	Bayonet Lock	Backshell Coupling Nut Winged	Gold	Crimp Solder Cup	Unshielded	Communication Systems Industrial Marine Medical	0.18 "	5.59 mm	4.57 mm	0.22 in	UL94 V-0	85 °C	-40 C	125 VAC	Copper Alloy	Elastomer	IP66 IP67 IP68	6	Plug Female Sockets	Free Hanging (In-Line)
SWITCHCRAFT/CONXALL EN2C6F26G2W	Thermoplastic	Keyed	Black	Plastic	Bayonet Lock	Backshell Coupling Nut Winged	Gold	Crimp Solder Cup	Unshielded	Communication Systems Industrial Marine Medical	0.14 in	4.57 mm	3.56 mm	0.18 "	UL94 V-0	85 °C	-40 C	125 VAC	Copper Alloy	Elastomer	IP66 IP67 IP68	6	Plug Female Sockets	Free Hanging (In-Line)
