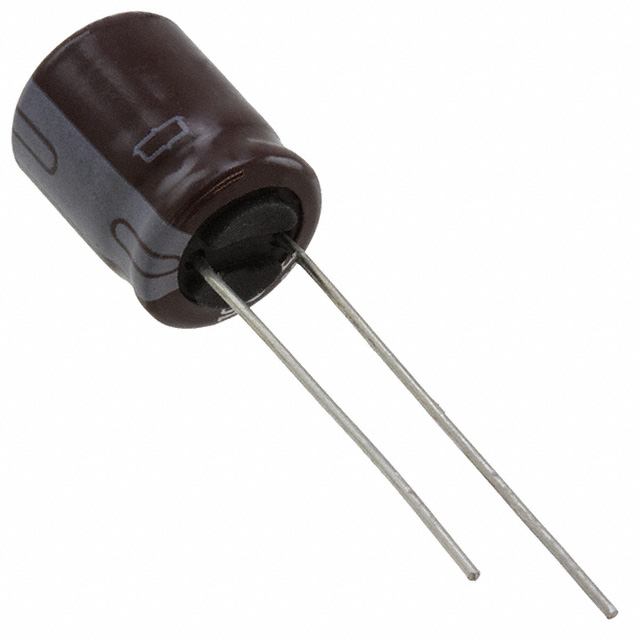

KMQ-LL Series

Manufacturer: Chemi-Con

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED 350VDC 47UF TOL 20% 16X25MM AEC-Q200

Part	Voltage - Rated	Package / Case	Applications	Tolerance	Polarization	Operating Temperature [Min]	Operating Temperature [Max]	Lead Spacing	Lead Spacing	Lifetime @ Temp.	Size / Dimension [diameter]	Size / Dimension [diameter]	Capacitance	Ripple Current @ Low Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Ripple Current @ High Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]
Chemi-Con EKMQ351ELL470ML25S	350 V	Can Radial	General Purpose	20 %	Polar	-40 C	105 ░C	0.295 in	7.5 mm	2000 Hrs	0.63 in	16 mm	47 µF	230 mA	26.5 mm	1.043 in	Through Hole	414 mA
Chemi-Con EKMQ251ELL100MJC5S	250 V	Can Radial	General Purpose	20 %	Polar	-40 C	105 ░C	0.197 "	5 mm	2000 Hrs	0.394 in	10 mm	10 µF	71 mA			Through Hole	127.8 mA	14 mm	0.551 in
Chemi-Con EKMQ401ELL470ML25S	400 V	Can Radial	General Purpose	20 %	Polar	-40 C	105 ░C	0.295 in	7.5 mm	2000 Hrs	0.63 in	16 mm	47 µF	200 mA	26.5 mm	1.043 in	Through Hole	360 mA
Chemi-Con EKMQ161ELL101MK25S	160 V	Can Radial	General Purpose	20 %	Polar	-40 C	105 ░C	0.197 "	5 mm	2000 Hrs	0.492 in	12.5 mm	100 µF	310 mA	26.5 mm	1.043 in	Through Hole	465 mA
Chemi-Con EKMQ100ELL222MJ16S	10 V	Can Radial	General Purpose	20 %	Polar	-55 C	105 ░C	0.197 "	5 mm	2000 Hrs	0.394 in	10 mm	2200 µF	705 mA	0.689 in		Through Hole	761.4 mA			17.5 mm
Chemi-Con EKMQ201ELL101ML25S	200 VDC	Can Radial	General Purpose	20 %	Polar	-40 C	105 ░C	0.295 in	7.5 mm	2000 Hrs	0.63 in	16 mm	100 µF	335 mA	26.5 mm	1.043 in	Through Hole	502.5 mA
Chemi-Con EKMQ401ELL3R3MHB5D	400 V	Can Radial	General Purpose	20 %	Polar	-40 C	105 ░C	0.138 in	3.5 mm	1000 Hrs	0.315 in	8 mm	3.3 µF	34 mA	13 mm	0.512 "	Through Hole	85 mA
Chemi-Con EKMQ350ELL102MK20S	35 V	Can Radial	General Purpose	20 %	Polar	-55 C	105 ░C	0.197 "	5 mm	2000 Hrs	0.492 in	12.5 mm	1000 µF	810 mA			Through Hole	1.215 A	21.5 mm	0.846 "
