ADT Series

Catalog

DESKTOP AC ADAPTERS 120W / 24V ADAPTER - C6 - BARREL TYPE

Part	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Operating Temperature [Min]	Operating Temperature [Max]	Standard Number	Applications	Output Connector [custom]	Output Connector [custom]	Output Connector	Output Connector [custom]	Power (Watts)	Voltage - Output	Efficiency	Voltage - Input [Max]	Voltage - Input [Min]	No Load Power Consumption	Input Type	Current - Output (Max)	Region Utilized	Form	Approval Agency	Input Connector	Current - Output (Max) [Max]	Cord Length	Cord Length	Output Connector [diameter]	Output Connector [x]

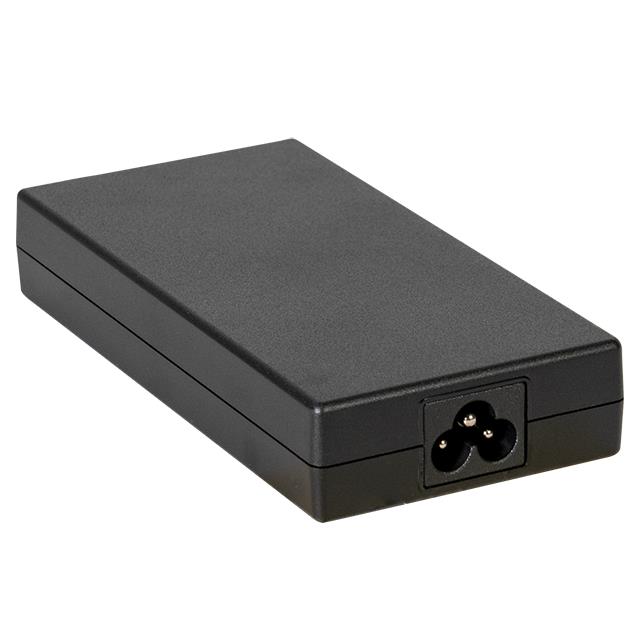

Delta Electronics ADT-120A24AA F-A	2.7 in	24.5 mm 25.4 mm	138 mm	68.5 mm	5.43 in	0.96 in 1 in	-10 °C	60 °C	60950-1 62368-1	ITE (Commercial)	5.5 mm	11 mm	Barrel Plug R/A	2.5 mm	120 W	24 V	CoC Tier 2 Level VI	264 VAC	90 VAC	150 mW	Cord (Sold Separately)	5 A	International	Desktop (Class I)	CB CCC CE cULus KC PSE TUV	IEC 320-C6

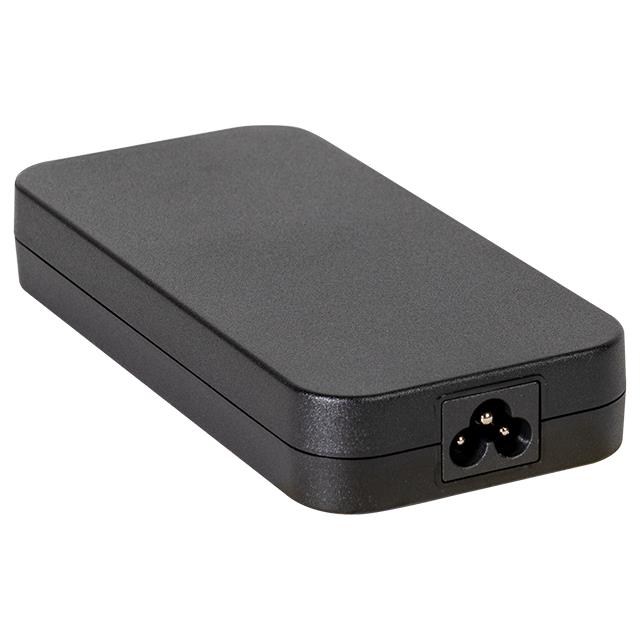

Delta Electronics ADT-150A24AA H-A	3 "	25.6 mm	160 mm	76.2 mm	6.3 in	1.01 "	-10 °C	60 °C	60950-1 62368-1	ITE (Commercial)			Barrel Plug		150 W	24 V	CoC Tier 2 Level VI	264 VAC	90 VAC	150 mW	Cord (Sold Separately)		International	Desktop (Class I)	CB CCC CE cULus KC PSE TUV	IEC 320-C6	6.25 A	1.8 m	70.8 in	2.5 mm 5.5 mm	12 mm
