GW22RC Series
Manufacturer: NKK Switches
Beta
⌘K

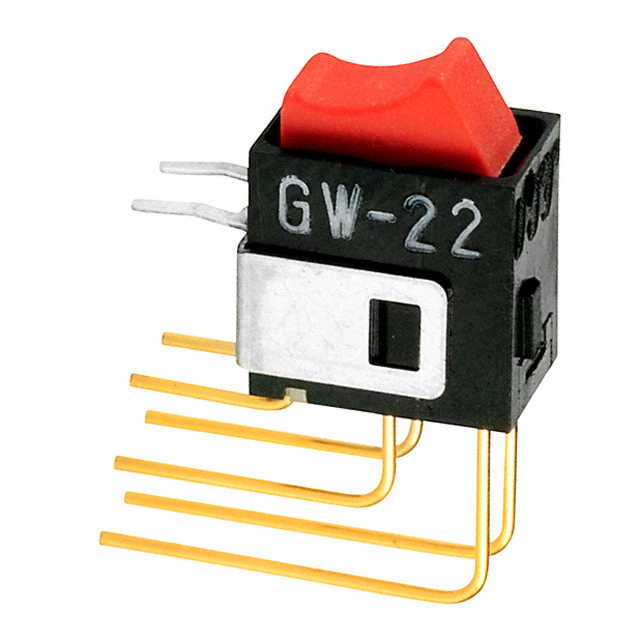

SWITCH ROCKER DPDT 0.4VA 28V
| Part | Mechanical Life | Electrical Life | Voltage Rating - DC | Switch Function | Mounting Type | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Type | Features | Color - Actuator/Cap | Approval Agency | Termination Style | Voltage Rating - AC | Circuit | Actuator Marking |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 50000 Cycles | 50000 Cycles | 28 V | On-On | Right Angle Through Hole | 0.4 VA | 85 °C | -30 ░C | Concave (Curved) | Sealed - Flux Protection | Red | CSA UL | PC Pin | 28 V | DPDT | No Marking |
 NKK Switches | 50000 Cycles | 50000 Cycles | 28 V | On-On | Right Angle Through Hole Vertical | 0.4 VA | 85 °C | -30 ░C | Concave (Curved) | Sealed - Flux Protection | Red | CSA UL | PC Pin | 28 V | DPDT | No Marking |
 NKK Switches | 50000 Cycles | 50000 Cycles | 28 V | On-On | Through Hole | 0.4 VA | 85 °C | -30 ░C | Concave (Curved) | Sealed - Flux Protection | Red | CSA UL | PC Pin | 28 V | DPDT | No Marking |
