ERJ-C1 Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K

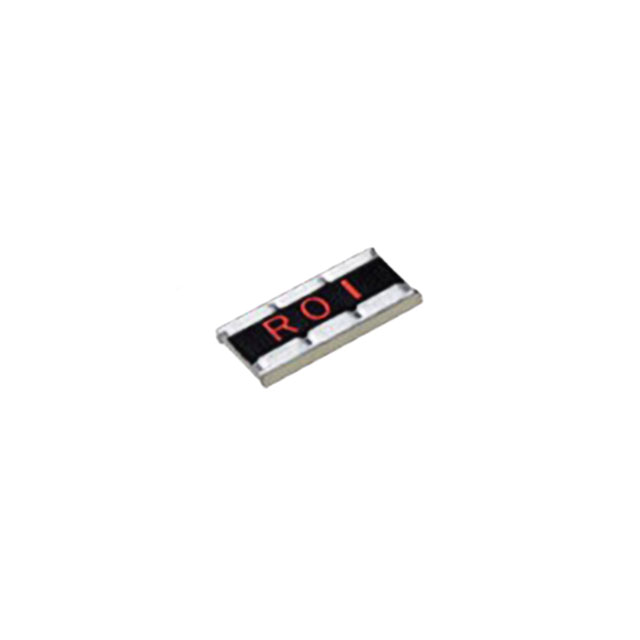

SMD CURRENT SENSE RESISTOR, 0.15 OHM, ERJ-C1 SERIES, 2010 WIDE, 2 W, ± 5%, THICK FILM
| Part | Temperature Coefficient | Ratings | Number of Terminations [custom] | Power (Watts) | Composition | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Resistance | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Features | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Supplier Device Package | Tolerance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | 200 ppm/°C | AEC-Q200 | 2 | 2 W | Thick Film | 155 C | -55 C | 1020 Wide 2010 (5025 Metric) | 0.15 Ohms | 0.098 in | 2.5 mm | 5 mm | 0.197 " | Anti-Sulfur Automotive AEC-Q200 Current Sense | 0.03 " | 0.75 mm | 1020 | 5 % |
Panasonic Electronic Components | 200 ppm/°C | AEC-Q200 | 2 | 2 W | Thick Film | 155 C | -55 C | 1020 Wide 2010 (5025 Metric) | 39 mOhms | 0.098 in | 2.5 mm | 5 mm | 0.197 " | Anti-Sulfur Automotive AEC-Q200 Current Sense | 0.03 " | 0.75 mm | 1020 | 1 % |
Panasonic Electronic Components | 100 ppm/°C | AEC-Q200 | 2 | 2 W | Thick Film | 155 C | -55 C | 1020 Wide 2010 (5025 Metric) | 0.12 Ohms | 0.098 in | 2.5 mm | 5 mm | 0.197 " | Anti-Sulfur Automotive AEC-Q200 Current Sense | 0.03 " | 0.75 mm | 1020 | 1 % |
Panasonic Electronic Components | 200 ppm/°C | AEC-Q200 | 2 | 2 W | Thick Film | 155 C | -55 C | 1020 Wide 2010 (5025 Metric) | 24 mOhms | 0.098 in | 2.5 mm | 5 mm | 0.197 " | Anti-Sulfur Automotive AEC-Q200 Current Sense | 0.03 " | 0.75 mm | 1020 | 5 % |
Panasonic Electronic Components | 200 ppm/°C | AEC-Q200 | 2 | 2 W | Thick Film | 155 C | -55 C | 1020 Wide 2010 (5025 Metric) | 36 mOhms | 0.098 in | 2.5 mm | 5 mm | 0.197 " | Anti-Sulfur Automotive AEC-Q200 Current Sense | 0.03 " | 0.75 mm | 1020 | 5 % |
Panasonic Electronic Components | 150 ppm/°C | AEC-Q200 | 2 | 2 W | Thick Film | 155 C | -55 C | 1020 Wide 2010 (5025 Metric) | 0.068 Ohms | 0.098 in | 2.5 mm | 5 mm | 0.197 " | Anti-Sulfur Automotive AEC-Q200 Current Sense | 0.03 " | 0.75 mm | 1020 | 1 % |
