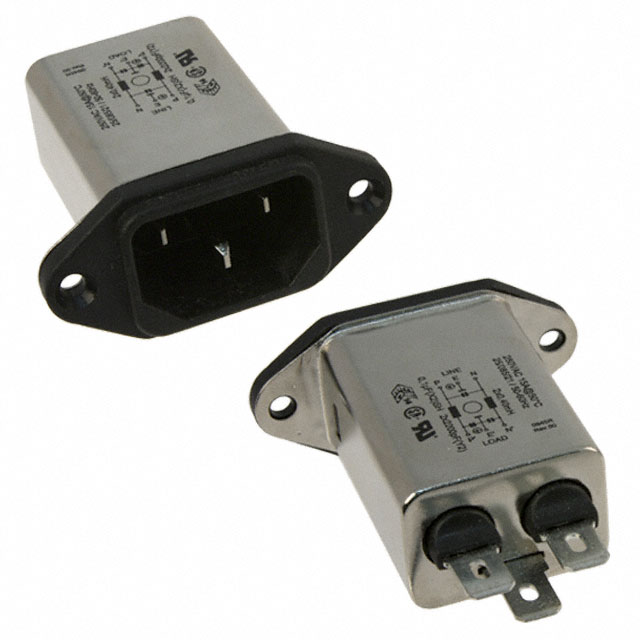

FN9244 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

PWR ENT RCPT IEC320-C16 PANEL QC

Part	Connector Style	Ingress Protection	Filter Type	Mounting Type	Termination	Termination	Termination	Current Rating - Filter	Material Flammability Rating	Approval Agency	Connector Type	Features	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]
TE Connectivity AMP Connectors FN9244-15-06HI	IEC 320-C16	IP40	Filtered (EMI RFI) - Commercial	Flange Panel Mount	6.3 mm	Quick Connect	0.25 "	15 A	UL94 V-2	CSA ENEC UL	Receptacle Male Blades	Front or Rear Side Mount
TE Connectivity AMP Connectors FN9244E-10-06	IEC 320-C14	IP40	Filtered (EMI RFI) - Commercial	Flange Panel Mount	6.3 mm	Quick Connect	0.25 "	10 A	UL94 V-2	CQC CSA ENEC UL	Receptacle Male Blades	Earth Line Choke Front or Rear Side Mount
TE Connectivity AMP Connectors FN9244-15-06HI	IEC 320-C16	IP40	Filtered (EMI RFI) - Commercial	Flange Panel Mount	6.3 mm	Quick Connect	0.25 "	15 A	UL94 V-2	CSA ENEC UL	Receptacle Male Blades	Front or Rear Side Mount
TE Connectivity AMP Connectors FN9244ESR-1-06	IEC 320-C14	IP40	Filtered (EMI RFI) - Commercial	Panel Mount Snap-In	6.3 mm	Quick Connect	0.25 "	1 A	UL94 V-2	CQC CSA ENEC UL	Receptacle Male Blades	Bleed Resistor Earth Line Choke	20.8 mm	29.4 mm	0.059 in	1.5 mm	0.028 in	0.7 mm
TE Connectivity AMP Connectors FN9244E-10-06	IEC 320-C14	IP40	Filtered (EMI RFI) - Commercial	Flange Panel Mount	6.3 mm	Quick Connect	0.25 "	10 A	UL94 V-2	CQC CSA ENEC UL	Receptacle Male Blades	Earth Line Choke Front or Rear Side Mount
TE Connectivity AMP Connectors FN9244ESR-1-06	IEC 320-C14	IP40	Filtered (EMI RFI) - Commercial	Panel Mount Snap-In	6.3 mm	Quick Connect	0.25 "	1 A	UL94 V-2	CQC CSA ENEC UL	Receptacle Male Blades	Bleed Resistor Earth Line Choke	20.8 mm	29.4 mm	0.059 in	1.5 mm	0.028 in	0.7 mm
