FSMS Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

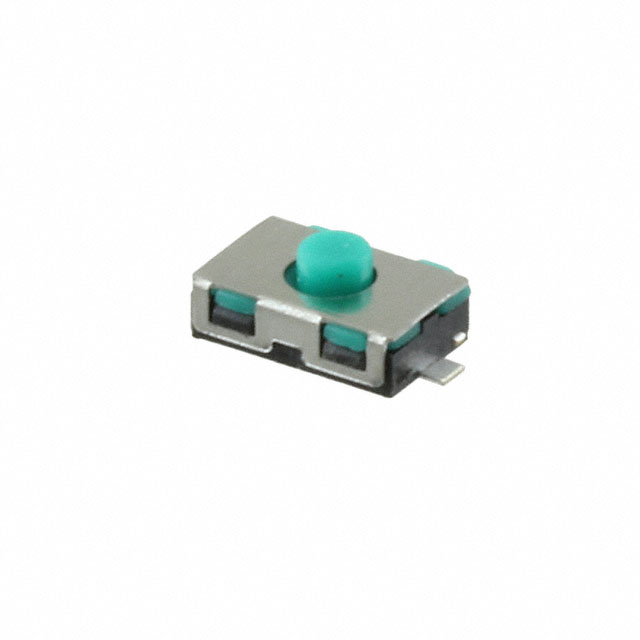

SWITCH TACTILE SPST-NO 0.05A 32V
| Part | Switch Travel | Mechanical Life | Actuator Material | Termination Style | Actuator Type | Circuit | Actuator Orientation | Outline [x] | Outline [y] | Actuator Height off PCB, Vertical [z] | Contact Rating @ Voltage | Illumination | Operating Temperature [Max] | Operating Temperature [Min] | Operating Force | Switch Function | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.5 mm | 100000 Cycles | Silicone Rubber | Gull Wing | Standard | SPST-NO | Top Actuated | 6 mm | 4 mm | 2.5 mm | 0.05 A 32 VDC | Non-Illuminated | 85 °C | -40 C | 520 gf | Off-Mom | Surface Mount |
