TCLT1008 Series

Catalog

OPTOISOLATR 5KV TRANSISTOR 4-SOP

Part	Current Transfer Ratio (Max) [Max]	Output Type	Number of Channels [custom]	Package / Case	Supplier Device Package	Current - Output / Channel [custom]	Input Type	Vce Saturation (Max) [Max]	Mounting Type	Voltage - Forward (Vf) (Typ)	Voltage - Output (Max) [Max]	Rise / Fall Time (Typ)	Current - DC Forward (If) (Max) [Max]	Current Transfer Ratio (Min)	Operating Temperature [Max]	Operating Temperature [Min]	Turn On / Turn Off Time (Typ)

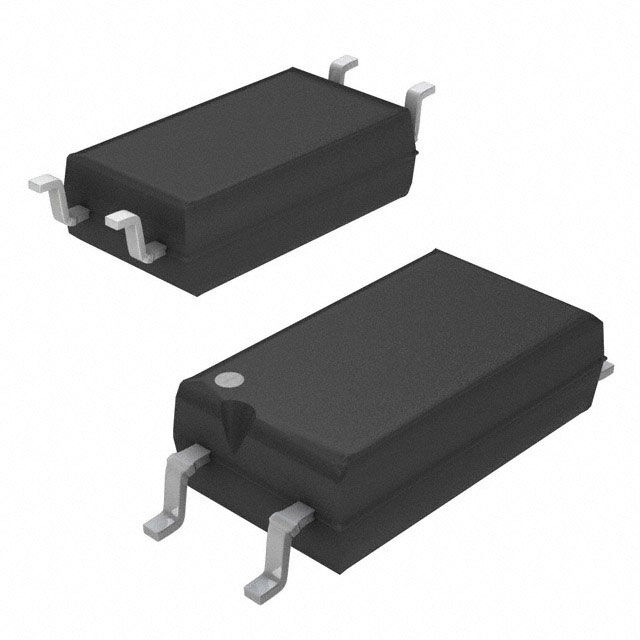

Vishay Semiconductor Opto Division TCLT1008	260 %	Transistor	1	4-SMD Gull Wing	4-SOP	50 mA	DC	300 mV	Surface Mount	1.25 V	70 V	3 µs 4.7 µs	60 mA	130 %	100 °C	-55 C	5 µs 6 µs
