TZ530N36 Series
Manufacturer: INFINEON
Beta
⌘K

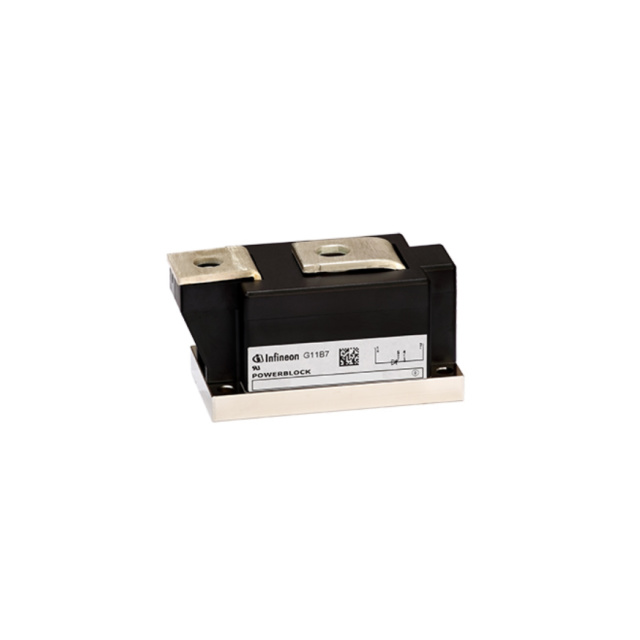

3600 V, 530 A POWER BLOCK 70 MM SINGLE THYRISTOR PHASE CONTROL MODULES
| Part | Voltage - Gate Trigger (Vgt) (Max) [Max] [custom] | Mounting Type | Structure | Voltage - Off State | Operating Temperature [Max] | Operating Temperature [Min] | Current - On State (It (RMS)) (Max) | Current - Hold (Ih) (Max) [Max] | Current - On State (It (AV)) (Max) | Package / Case | Current - Non Rep. Surge 50, 60Hz (Itsm) | Current - Gate Trigger (Igt) (Max) [Max] | Number of SCRs, Diodes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | 2 V | Chassis Mount | Single | 3.6 kV | 125 °C | -40 C | 1500 A | 500 mA | 955 A | Module | 22 A | 250 mA | 1 SCR |
