FT2431 Series

Catalog

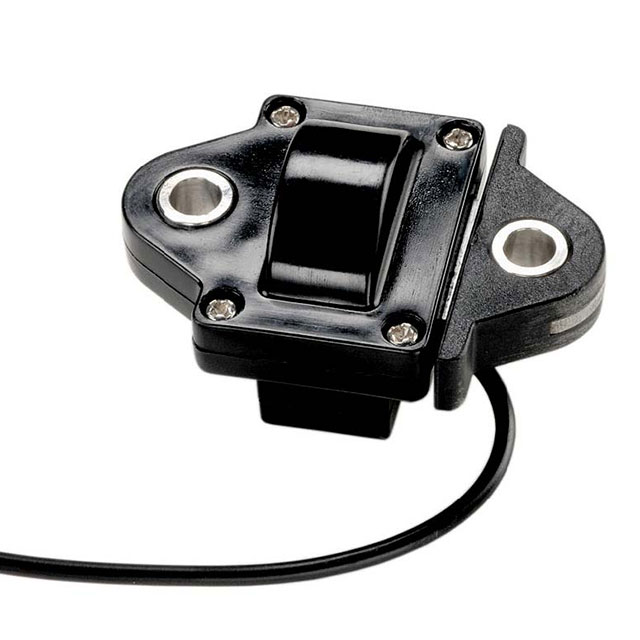

SENSOR FORCE LOAD CELL 25LBS

Part	Compensated Temperature [Max]	Includes	Operating Force	Operating Force	Accuracy	Operating Temperature [Max]	Operating Temperature [Min]	Sensor Type
TE Connectivity AMP Connectors FT2431-0000-0025-L	50 °C	Sensor	11.34 kgf	25 lbs	1 %	85 °C	-40 C	Load Cell
TE Connectivity AMP Connectors FT2431-0000-0050-L	50 °C	Sensor	22.68 kgf	50 lbs	1 %	85 °C	-40 C	Load Cell
TE Connectivity AMP Connectors FT2431-0000-0005-L	50 °C	Sensor	2.27 kgf	5 lbs	1 %	85 °C	-40 C	Load Cell
