0908-9 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

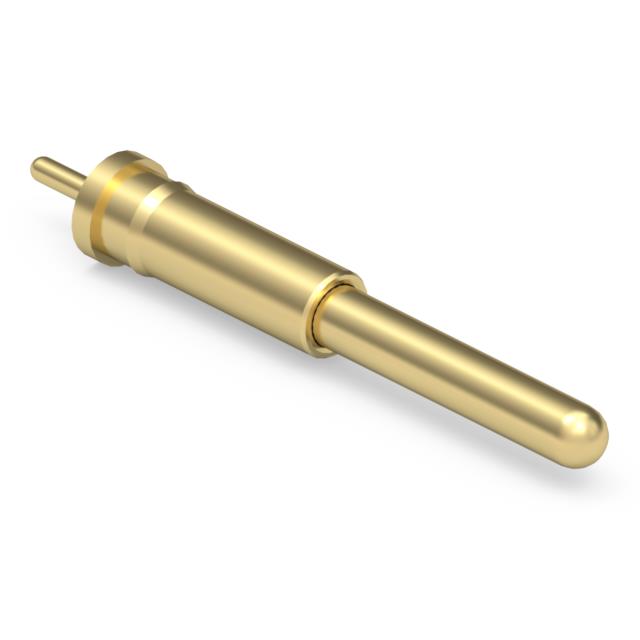

CONTACT SPRING LOADED T/H GOLD
| Part | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Minimum Working Height | Minimum Working Height | Mating Cycles | Recommended Working Height | Recommended Working Height | Operating Force - Mid Compression | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Contact Finish | Contact Material | Operating Force - Initial | Pad Layout Dimension | Pad Layout Dimension | Plunger Size [diameter] | Plunger Size [diameter] | Maximum Working Height [Max] | Maximum Working Height [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 2 A 5.2 A | -55 C | 125 °C | 9.52 mm | 0.375 in | 1000000 | 10.22 mm | 0.402 in | 60 gf | Sleeve & Plunger (Pogo Pins) | 20 µin | 0.51 µm | Through Hole | Gold | Brass Alloy | 10 gf | 0.072 in | 1.83 mm | 0.042 in | 1.07 mm | 0.43 in | 10.92 mm |
