11-10 Series
Manufacturer: 3M Electronic Specialty
Beta
⌘K

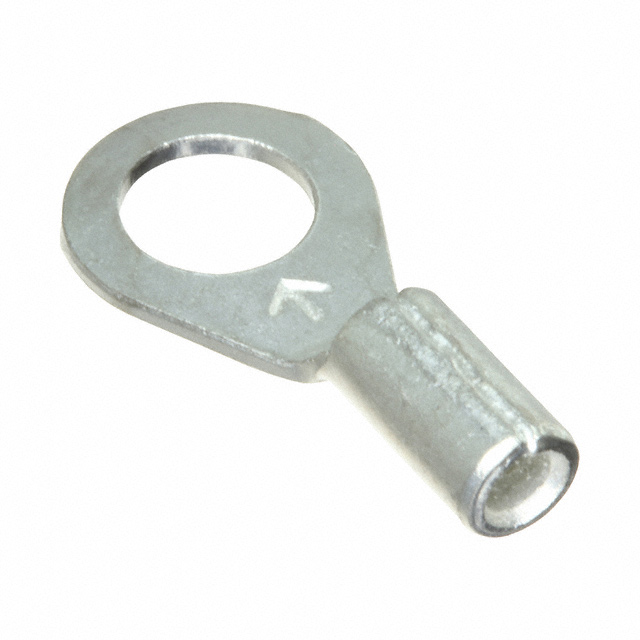

22-18 AWG NON-INSULATED BRAZED SEAM RING TONGUE TERMINAL
| Part | Termination | Length - Overall [x] | Length - Overall [x] | Mounting Type | Features | Wire Gauge [Max] | Wire Gauge [Min] | Contact Finish | Contact Material | Insulation | Stud/Tab Size | Width - Outer Edges [x] | Width - Outer Edges [x] | Terminal Type | Thickness | Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 3M Electronic Specialty | Crimp | 0.7 in | 17.78 mm | Free Hanging (In-Line) | Brazed Seam | 22 AWG | 17.5 AWG | Tin | Copper | Non-Insulated | 10 Stud | 8.38 mm | 0.33 in | Circular | 0.76 mm | 0.03 in |
