395-032 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SINGLE FML 32POS 0.100
| Part | Material - Insulation | Termination Rows | Contact Material | Gender | Card Type | Read Out | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Card Thickness [Max] | Card Thickness [Min] | Number of Rows | Features | Color | Termination | Contact Type | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Bay/Row | Flange Feature | Pitch | Pitch | Termination Rows [custom] | Number of Rows [custom] | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

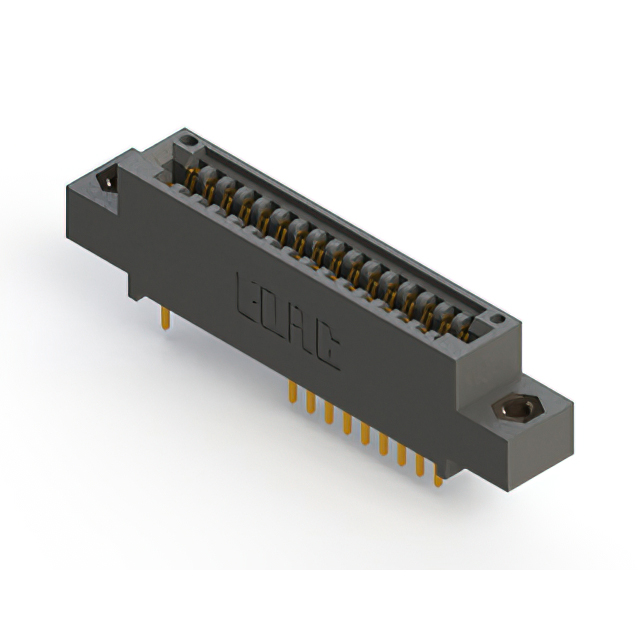

 EDAC Inc. | Polyester Thermoplastic | 1 | Copper Alloy | Female | Non Specified - Single Edge | Single | Through Hole | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | Card Guides | Black | Solder | Cantilever | Gold | 0.25 Ám | 10 Áin | 32 | 4-40 Threaded Insert Top Mount Opening | 0.1 " | 2.54 mm | ||||

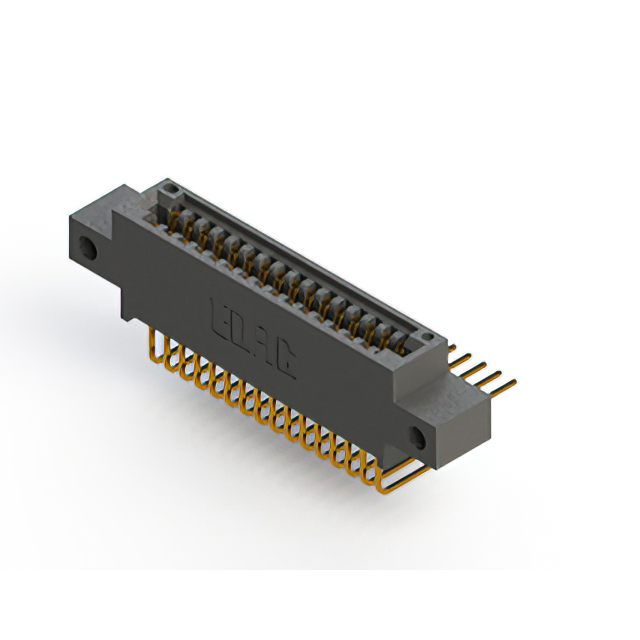

 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | Female | Non Specified - Dual Edge | Dual | Board Edge Straddle Mount | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Card Extender | Black | Solder Eyelet(s) | Cantilever | Gold | 0.25 Ám | 10 Áin | 16 | 4-40 Flush Mount Threaded Insert Top Opening | 0.1 " | 2.54 mm | 2 | 2 | ||||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | Female | Non Specified - Dual Edge | Dual | Right Angle Through Hole | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Solder | Cantilever | Gold | 0.25 Ám | 10 Áin | 16 | Side Mount Opening Unthreaded | 0.1 " | 2.54 mm | 2 | 2 | 0.128 " | 3.25 mm | |||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | Female | Non Specified - Dual Edge | Dual | Through Hole | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Card Guides | Black | Solder | Cantilever | Gold | 0.25 Ám | 10 Áin | 16 | 4-40 Threaded Insert Top Mount Opening | 0.1 " | 2.54 mm | 2 | 2 | ||||

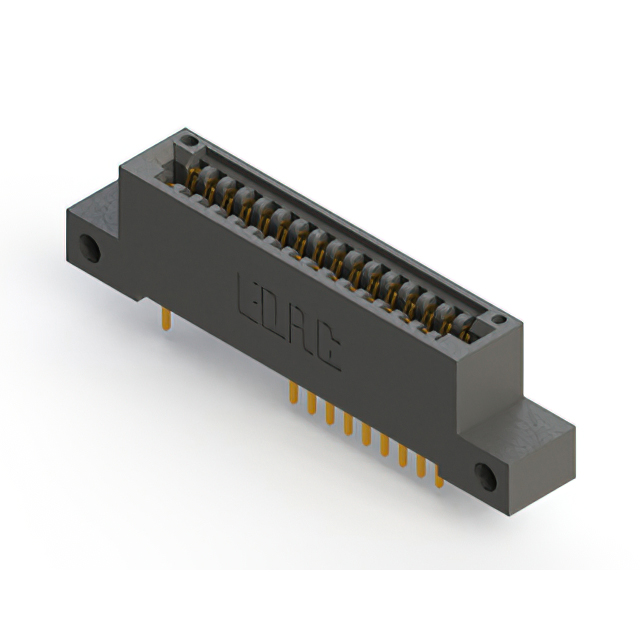

 EDAC Inc. | Polyester Thermoplastic | 1 | Copper Alloy | Female | Non Specified - Single Edge | Single | Through Hole | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | Black | Solder | Cantilever | Gold | 0.25 Ám | 10 Áin | 32 | Side Mount Opening Unthreaded | 0.1 " | 2.54 mm | 0.128 " | 3.25 mm | |||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | Female | Non Specified - Dual Edge | Dual | Through Hole | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Solder | Cantilever | Gold | 0.25 Ám | 10 Áin | 16 | Flush Mount Side Opening Unthreaded | 0.1 " | 2.54 mm | 2 | 2 | 0.128 " | 3.25 mm | |||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | Female | Non Specified - Dual Edge | Dual | Through Hole | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Solder | Cantilever | Gold | 0.25 Ám | 10 Áin | 16 | Flush Mount Top Opening Unthreaded | 0.1 " | 2.54 mm | 2 | 2 | 0.128 " | 3.25 mm | |||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | Female | Non Specified - Dual Edge | Dual | Through Hole | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Solder | Cantilever | Gold | 0.25 Ám | 10 Áin | 16 | M3 Threaded Insert Top Mount Opening | 0.1 " | 2.54 mm | 2 | 2 | |||||
 EDAC Inc. | Polyester Thermoplastic | 1 | Copper Alloy | Female | Non Specified - Single Edge | Single | Through Hole | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | Black | Solder | Cantilever | Gold | 0.25 Ám | 10 Áin | 32 | 0.1 " | 2.54 mm | 0.128 " | 3.25 mm | ||||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | Female | Non Specified - Dual Edge | Dual | Through Hole | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Solder | Cantilever | Gold | 0.25 Ám | 10 Áin | 16 | 0.1 " | 2.54 mm | 2 | 2 | 0.156 " | 3.96 mm |
