1432782 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

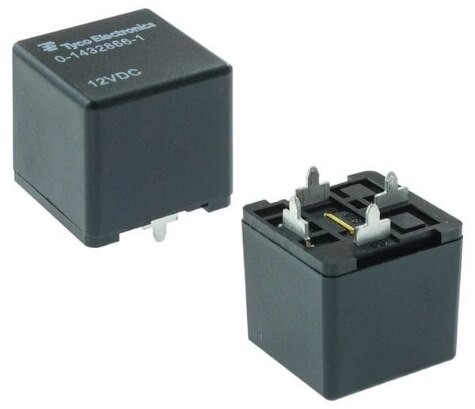

AUTOMOTIVE RELAYS SPST QC 12VDC MINI-ISO
| Part | Coil Resistance | Termination Style | Contact Material | Coil Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Switching Voltage | Must Release Voltage | Contact Rating (Current) | Release Time | Coil Type | Operate Time | Mounting Type | Contact Form | Coil Current | Must Operate Voltage | Relay Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 90 Ohms | Plug In Quick Connect - 0.250" (6.3mm) | Silver Tin Oxide (AgSnO) | 12 VDC | 85 °C | -40 C | 14 VDC | 1.2 VDC | 30 A | 5 ms | Non Latching | 8 ms | Socketable | SPST-NO (1 Form A) | 133 mA | 7.8 VDC | General Purpose |
