0ADE Series
Manufacturer: Bel Fuse Inc.
Beta
⌘K

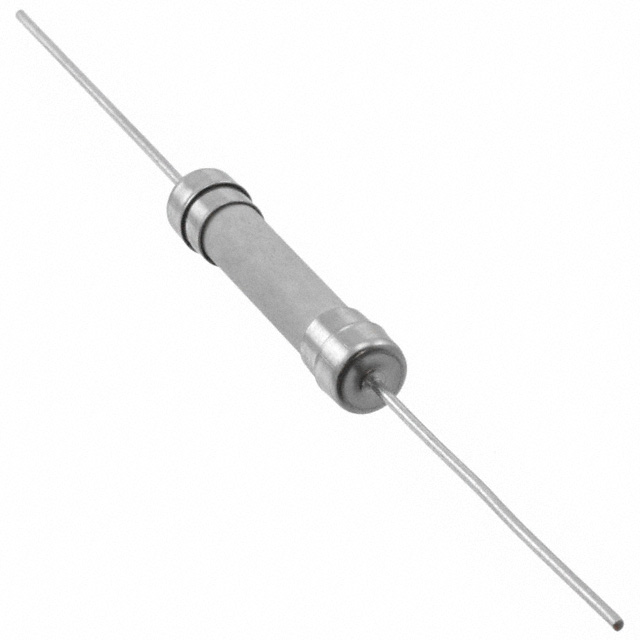

FUSES WITH LEADS - THROUGH HOLE FUSE, CERAMIC TUBE 25A, 500VAC/VDC
| Part | DC Cold Resistance | Voltage Rating - AC | Operating Temperature [Min] | Operating Temperature [Max] | Response Time | Fuse Type | Current Rating (Amps) | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [diameter] | Package / Case [y] | Package / Case | Package / Case [x] | Mounting Type | Voltage Rating - DC | Breaking Capacity @ Rated Voltage | Melting I²t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bel Fuse Inc. | 0.0046 Ohms | 500 V | -50 °C | 105 ░C | Fast Blow | Cartridge Ceramic | 25 A | 32.79 mm | 6.81 mm | 1.291 " | 0.268 " | 3AB 3AG | 0.25 " | Through Hole | 500 V | 20 kA 30 kA | 200 I²t |
