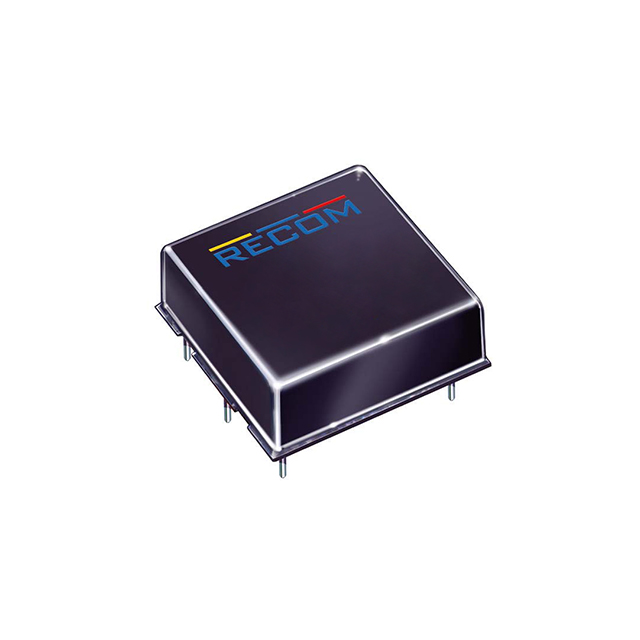

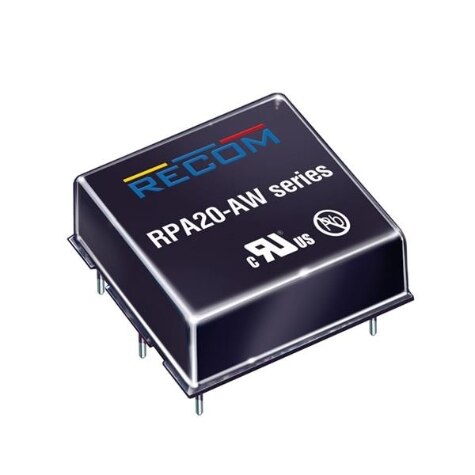

RPA20-AW Series
Isolated DC/DC Converters - Through Hole 20W 9-36Vin +/-12Vout 830mA
Manufacturer: Recom Power
Catalog
Isolated DC/DC Converters - Through Hole 20W 9-36Vin +/-12Vout 830mA
Beta
⌘K
Isolated DC/DC Converters - Through Hole 20W 9-36Vin +/-12Vout 830mA
Isolated DC/DC Converters - Through Hole 20W 9-36Vin +/-12Vout 830mA
Isolated DC/DC Converters - Through Hole 20W 9-36Vin +/-12Vout 830mA
| Part | Number of Outputs | Applications | Control Features | Power (Watts) | Features | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Input (Min) [Min] | Efficiency | Package / Case | Voltage - Input (Max) [Max] | Supplier Device Package | Type | Voltage - Output 1 | Current - Output (Max) [Max] | Voltage - Isolation | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Current - Output (Max) | Current - Output (Max) | Voltage - Output 2 | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | 1 | ITE (Commercial) Railway | Active Low Enable | 20 W | OCP OTP OVP Remote On/Off SCP UVLO | Through Hole | -40 °C | 85 °C | 9 V | 87 % | 6-DIP Module | 36 V | 6-DIP Module | Isolated Module | 3.3 V | 6 A | 1.6 kV | ||||||||||
 Recom Power | 1 | ITE (Commercial) Railway | Active High Enable | 20 W | OCP OTP OVP Remote On/Off SCP UVLO | Through Hole | -40 °C | 85 °C | 9 V | 88 % | 6-DIP Module | 36 V | Isolated Module | 5 V | 4 A | 1.6 kV | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | |||||
Recom Power | 1 | ITE (Commercial) Railway | 20 W | OCP OTP OVP Remote On/Off SCP UVLO | Through Hole | -40 °C | 85 °C | 9 V | 88 % | 6-DIP Module | 36 V | 6-DIP Module | Isolated Module | 12 V | 1.67 A | 1.6 kV | |||||||||||
Recom Power | 2 | ITE (Commercial) Railway | 20 W | OCP OTP OVP Remote On/Off SCP UVLO | Through Hole | -40 °C | 85 °C | 9 V | 88 % | 6-DIP Module | 36 V | 6-DIP Module | Isolated Module | 12 V | 1.6 kV | 830 mA | 830 mA | -12 V | |||||||||
Recom Power | 1 | ITE (Commercial) Railway | Active High Enable | 20 W | OCP OTP OVP Remote On/Off SCP UVLO | Through Hole | -40 °C | 85 °C | 9 V | 88 % | 6-DIP Module | 36 V | Isolated Module | 12 V | 1.67 A | 1.6 kV | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | |||||
Recom Power | 1 | ITE (Commercial) Railway | Active High Enable | 20 W | OCP OTP OVP Remote On/Off SCP UVLO | Through Hole | -40 °C | 85 °C | 9 V | 88 % | 6-DIP Module | 36 V | 6-DIP Module | Isolated Module | 12 V | 1.67 A | 1.6 kV | ||||||||||
 Recom Power | 1 | ITE (Commercial) Railway | Active High Enable | 20 W | OCP OTP OVP Remote On/Off SCP UVLO | Through Hole | -40 °C | 85 °C | 9 V | 87 % | 6-DIP Module | 36 V | Isolated Module | 3.3 V | 6 A | 1.6 kV | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | |||||
Recom Power | 1 | ITE (Commercial) Railway | 20 W | OCP OTP OVP Remote On/Off SCP UVLO | Through Hole | -40 °C | 85 °C | 9 V | 88 % | 6-DIP Module | 36 V | 6-DIP Module | Isolated Module | 15 V | 1.33 A | 1.6 kV | |||||||||||
Recom Power | 2 | ITE (Commercial) Railway | Active Low Enable | 20 W | OCP OTP OVP Remote On/Off SCP UVLO | Through Hole | -40 °C | 85 °C | 9 V | 88 % | 6-DIP Module | 36 V | 6-DIP Module | Isolated Module | 15 V | 1.6 kV | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | 670 mA | -15 V | 670 mA | ||
Recom Power | 1 | ITE (Commercial) Railway | 20 W | OCP OTP OVP Remote On/Off SCP UVLO | Through Hole | -40 °C | 85 °C | 9 V | 88 % | 6-DIP Module | 36 V | 6-DIP Module | Isolated Module | 12 V | 1.67 A | 1.6 kV | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm |
